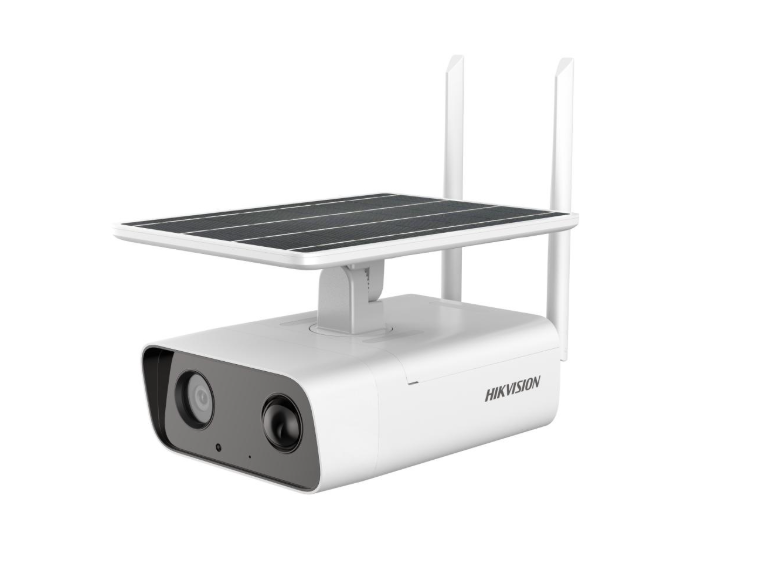

Hikvision 4MP Solar-powered Security Camera Setup

• Detects human body through passive infrared which is sensitive to body temperature (PIR)
• Standalone with built-in solar panel and battery
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP66)
• Support remote control with Hik-Connect APP

Specification

Camera

• Image Sensor: 1.3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time:1/3 s to 1/100,000 s
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 4 and 6 mm optional
• Aperture: F1.6
• Iris Type: Fixed
• Focal Length & FOV;

  4 mm, horizontal FOV 83.7°, vertical FOV 44°, diagonal FOV 99.5°

  6 mm, horizontal FOV 51.8°, vertical FOV 27.9°, diagonal FOV 60.5°

• Lens Mount: M12

Illuminator

• Supplement Light Range;

  Performance mode: up to 30 m

  Proactive mode: up to 10 m

• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream;

           50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

           60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream;

           50 Hz: 12.5 fps (640 × 480, 640 × 360)

           60 Hz: 15 fps (640 × 480, 640 × 360)

Video Compression: Main stream: H.265+(performance mode)/H.265/H.264+(performance mode)/ H.264

                              Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• Simultaneous Live View: Up to 6 channels
• API: EZVIZ
• Protocols: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Network Storage: Auto network replenishment (ANR)
• Client;

  iVMS-4200, Hik-Connect, Hik-Central

  Proactive mode: Hik-Connect

• Web Browser;

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• Frequency;

  LTE-TDD: Band 38/40/41;

  LTE-FDD: Band 1/3/5/7/8/20/28;

  WCDMA: Band 1/5/8;

  GSM: band 3/5/8



• Standard: LTE-TDD, LTE-FDD, WCDMA, GSM


• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, Distortion correction
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Transducer

• PIR Range: Up to 10 m

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage;

  Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB

  Built-in 8 GB eMMC storage (6 GB avaible for recording)

• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Reset Key: Yes

Event

• Basic Event: PIR, exception
• Linkage: Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

General

• Power;

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 40 mW

  Max. power consumption: 4.8 W

  Power supply: 5 VDC ± 10%, reverse polarity protection

  Power supply interface: microUSB

  Extened solar panel: Ø3.5 mm, 5 VDC

• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Startup and Operating Conditions: 0 °C to 40 °C (32 °F to 104 °F), humidity 95% or less (non-condensing)
• Dimension: 245.8 mm × 156 mm × 214 mm (9.7" × 6.1" × 8.4")
• Package Dimension: 730 mm × 722 mm × 285 mm (28.7" × 28.4" × 11.2")
• Weight: 4G model: approx. 1235 g (2.7 lb.)
• With Package Weight: 4G model: approx. 1890 g (4.2 lb.)
• PV Panel;

  Dimension: 205.1 mm × 145.1 mm × 2.35 mm (8.1" × 5.7\" × 0.1\")

  Standard output consumption: 5 W

  Standard testing condition: AM = 1.5, 25 °C (77 °F), 1000 W/m², SMQ + 12%

Battery

• Battery Type: Ternary lithium
• Capacity: 10 Ah
• Max. Charging Voltage: 4.25 V
• Operating Temperature;

  0 °C to 50 °C (32 °F to 122 °F)

  Charging Condition: 0 °C to 50 °C (32 °F to 122 °F) (deviation: ± 5 °C)

  Discharging Condition: -20 °C to 60 °C (-4 °F to 140 °F) (deviation: ± 5 °C)

• Battery Voltage: 3.0 V to 4.2 V
• Cycle Lifetime;

  Low consumption real-time mode: 1 day (at the rate of one-hour alarm and half-hour remote live view per day)

  Wakeup Mode: 7 days (at the rate of 1.67-hour remote live view per day)

• Battery Life: More than 500 cycles
• Battery Weight: Approx. 185 g (0.4 lb.)

Approval

• RF: CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
• EMC;

  FCC (47 CFR Part 15, Subpart B)

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

  RCM (AS/NZS CISPR 32: 2015)

• Safety: CE-LVD (EN 62368-1: 2014/A11: 2017)
• Protection: IP66 (IEC 60529-2013)
