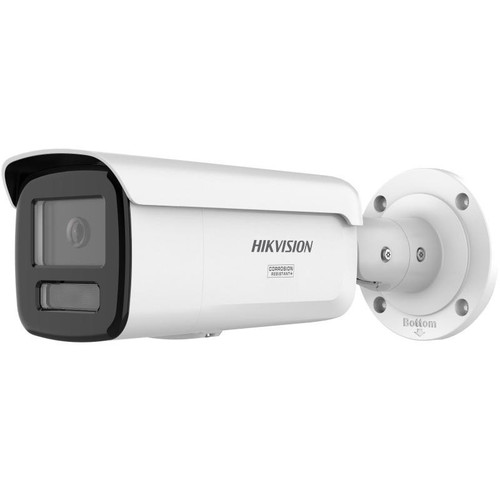

Hikvision 4MP Acusense Smart Hybrid Light Motorized Varifocal Bullet Network Camera

• 2.8/4 mm in one lens, point vari-focal
• Anti-corrosion design (NEMA 4X), more reliable
• Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
• Crystal-clear audio with Arrayed Dual-Mic
• Person and vehicle classification based on deep learning
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Colour: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 99.3°, vertical FOV 54.8°, diagonal FOV 120.2°

4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°

• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field: 2.8 mm: 1.1 m to ∞ | 4 mm: 1.3 m to ∞

DORI

• DORI

2.8mm: D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m

4mm: D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: -2LI and -2LI2U models: up to 60 m | -4LI and -4LI2U models up to 80 m

• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream:

50 Hz:

25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream:

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream:

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

• Video Compression:

Main stream: H.265/H.264/H.264+/H.265+,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

*Third stream is supported under certain settings.

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Bit Rate Control: CBR,VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Audio Compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: -2U: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: -2U: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• User/Host: Up to 32 users

3 user levels: administrator, operator, and user

• Client: iVMS-4200,Hik-Connect,Hik-Central
• Network Storage:

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Web Browser:

Plug-in required live view: IE 11,

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+


• Image Parameters Switch: Yes
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: -2U: 2 built-in microphones
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Smart Event: Scene change detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Deep Learning Function

• Face Capture: Yes
• Perimeter Protection:

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General

• Power

-2LI:

12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 11.5 W

-4LI:

12 VDC ± 25%, 0.91 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max.12.5 W

• Material: Metal
• Dimension: 88.7 mm × 91.2 mm × 287.2 mm (3.5" × 3.6" × 11.3")
• Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
• Weight: Approx. 1165 g (2.6 lb.)
• With Package Weight: Approx. 1690 g (3.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approval

• CE-EMC-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Safety: CB: IEC 62368-1: 2014+A11
• Environment:

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

• Protection: IP67: IEC 60529-2013
