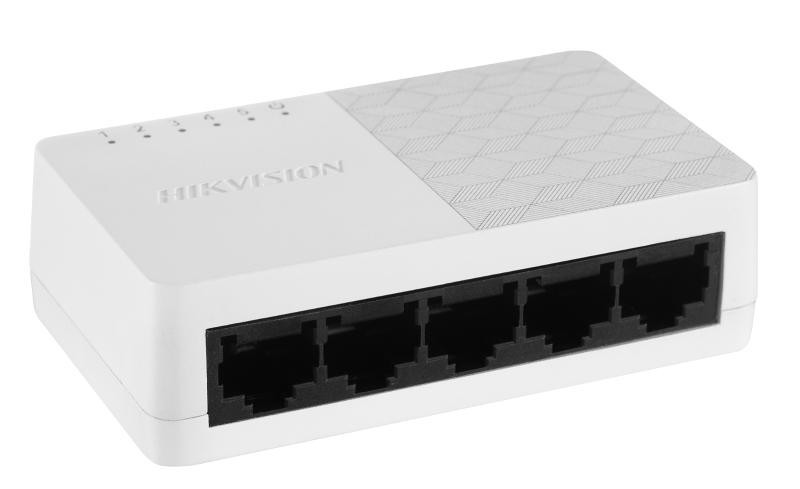

Hikvision 5-Port Fast Ethernet Plastic Switch - DS-3E0105D-O
- 5 x 10/100 Mbps ethernet port
- Supports MDI/MIDX
- Store-and-forward switching
- Supports MAC address auto-learning and aging
- Simple, compact body design
- Supports desktop and wall-mounting installation
- Plug & play, easy to use
DatasheetSpecifications
General
General
- Shell: ABS
- Net Weight: 0.093 kg (0.205 lb)
- Dimensions (W × H × D): 83.00 mm × 22.00 mm × 52.00 mm (3.27'' × 0.87'' × 2.05'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 5 VDC, 0.6 A
- Installation Mode: Desk-Mounted
- Max. Power Consumption: 3 W
- Surge Protection: 2 KV
Network Parameters
- Ports: 5 × 10/100 Mbps RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 1 Gbps
- Packet Forwarding Rate: 0.74 Mpps
- Internal Cache: 768Kbits
