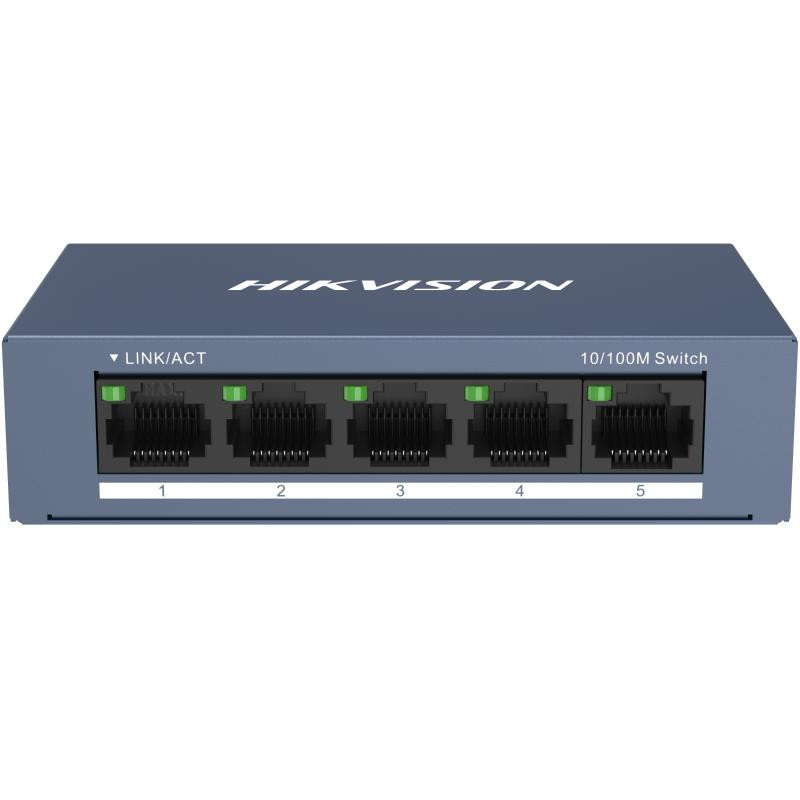

Hikvision 5-Port Fast Ethernet Switch - DS-3E0105-O
- 5 × 10/100 Mbps RJ45 Port
- Easy Plug-and-Play Installation
- Desk-and Wall-Mounting
- Rugged Metal Case, Exquisite and Beautiful Design
DatasheetSpecifications
General
- Shell: Metal material, fan-free design
- Net Weight: 0.15 kg (0.3307 lb)
- Dimensions (W × H × D): 103.05 mm × 25.6 mm × 61.1 mm (4.06'' × 1.01'' × 2.41'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 5 VDC, 1A
- Max. Power Consumption: 5 W
- Power Consumption in Idle: <5 W
- Surge Protection: 2 kV
Network Parameters
- Ports: 5 × 10/100 Mbps RJ45 port
- MAC Address Table: 1 K
- Switching Capacity: 1 Gbps
- Packet Forwarding Rate: 0.75 Mpps
- Internal Cache: 0.448 Mbits
