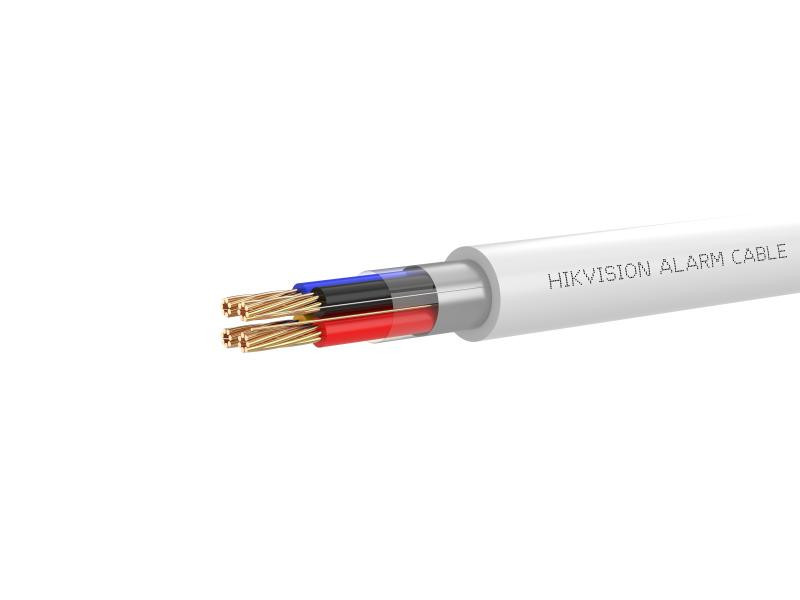

Hikvision 6-Core Shielded LSZH Alarm Cable For Wiring Of Fire Alarms, Smoke Detectors, Voice Communications Anti-Theft Alarms & Fire Circuit Protection
- Suitable for high-rise office buildings, hospitals, entertainment venues hotels, guest houses and other buildings.
- Used for wiring of fire alarms, smoke detectors, voice communications, anti-theft alarms, and fire circuit protection.
- Bare stranded copper conductor with less resistance, and better electrical properties and transmission performance.
- Jacket with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Smooth appearance, reel in box, easy to pull.
- Flame retardant, compliant with EN50575.
- Continuous operation at -20 to 70℃.
- Compliant with RoHS 2.0.
Specification
Category
- Product Category: Alarm Cable 6×0.22 mm2
Fire resistance
- Fire resistance: CPR Eca
Conductor
- Conductor Material: Bare Stranded Copper (99.95%)
- Conductor spec: 7/(0.185± 0.007) mm 25AWG
Insulation
- Insulation Material: LSZH
- Insulation Thickness: 0.2 mm
- Insulation Diameter: 1.15± 0.10 mm
Shield
- Shield: Drain wire + Aluminium foil
Drain
- Drain Material: Bare Stranded Copper (99.95%)
- Conductor Spec: 7/(0.185± 0.007) mm 25 AWG
Rip-cord
- Rip-cord: Yes, Nylon
Jacket
- Jacket Material: LSZH
- Jacket thickness: 0.50 mm
- Jacket Diameter: 4.60 ± 0.50 mm
- Colour: Blue
Packaging and Weights
- Packaging Type: Reel in box
- Package dimension: 328mm×258mm×330mm
- Packaging quantity: 1
- Length: (305 ± 1.5) m
- 20±2.0 kg
