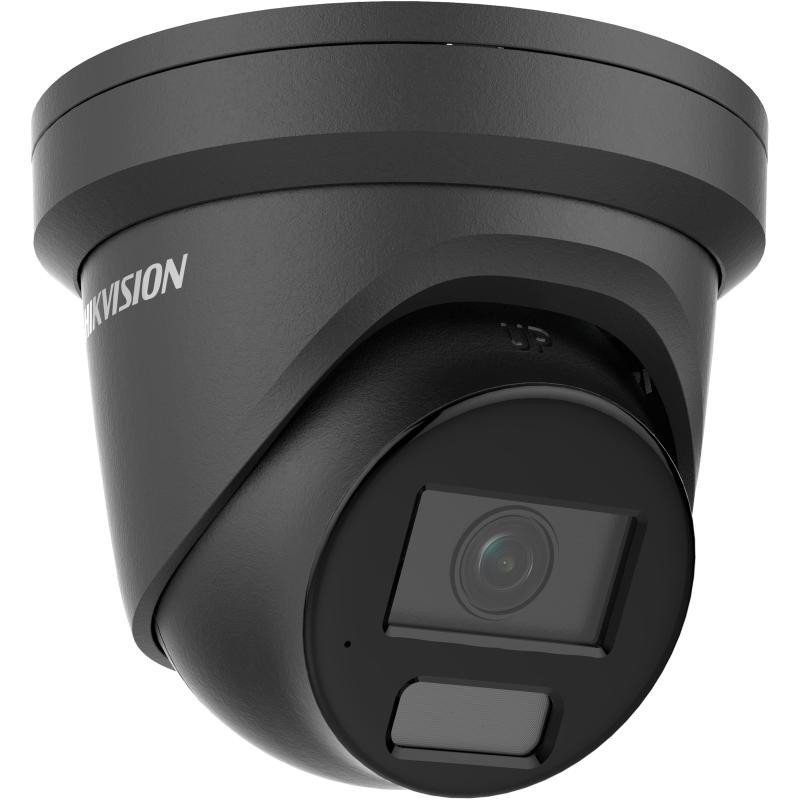

Hikvision 6 MP ColorVu Fixed Turret Network Camera

• High quality imaging with 6 MP resolution
• 24/7 colourful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3200 × 1800
• Min. Illumination: Colour: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 colour imaging
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8mm, Horizontal FOV: 109°, Vertical FOV: 59°, Diagonal FOV: 130°

4 mm, Horizontal FOV: 93°, Vertical FOV: 49°, Diagonal FOV: 111°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 3.1 m to ∞

4 mm: 3.5 m to ∞

DORI

• DORI:

• mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

General

• Power:

12 VDC ± 25%, 0.79 A, max. 9.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W

• Material: Metal
• Dimension:

Ø138.3 mm × 115.2 mm (Ø5.4 × 4.5\")"

• Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Weight: 800 g (1.8 lb.)
• With Package Weight: 1090 g (2.4 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams
