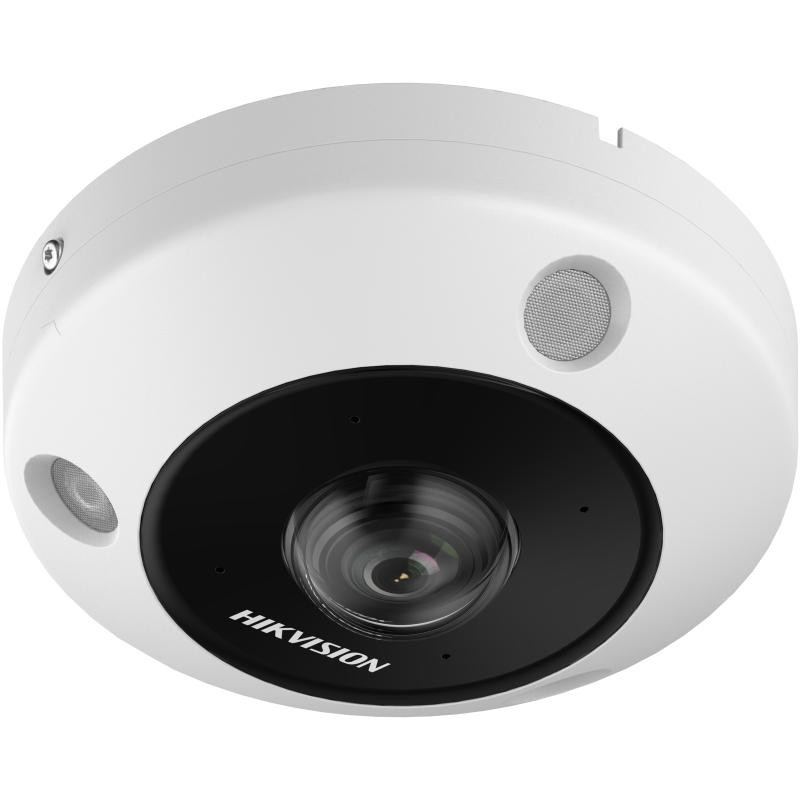

Hikvision 6 MP DeepinView Fisheye Network Camera - DS-2CD6365G1-IVS(1.16mm)

• Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
• Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
• Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
• Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
• High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
• Each image is clear and detailed
• Water and dust resistant (IP67) and vandal resistant (IK10)

Datasheet

Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2560 × 2560
• Min. Illumination: Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 1.16 mm
• Focal Length & FOV: 1.16 mm, horizontal FOV 180°, vertical FOV 180°
• Iris Type: Fixed
• Aperture: F2.25
• Depth of Field: 0.2 m to ∞

DORI

• DORI;

  D: 23.2 m

  O: 9.2 m

  R: 4.6 m

  I: 2.3 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 15 m
• Supplement Light Number: 3
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

HEOP

• Open Resources;

Memory: 60 MB,

Smart RAM: 800 MB,

eMMC: 2 GB

• Computing Power: 2 TOPS
• Open Capability: HEOP 2.0 OpendevSDK
• Deep Learning Structure: Caffe,PyTorch,TensorFlow
• Programming Language: C,C++

Fisheye Display

• Mount Type: Support wall/table/ceiling mounting
• Decoding Mode: Support hardware decoding and software decoding
• Display Mode;

20 display modes in total,

Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,

Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

General

• Power;

12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,

PoE: IEEE 802.3af, Class 3, max. 12.5 W

• Dimension;

Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3")

• Package Dimension: 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
• Weight: Approx. 715 g (1.58 lb.)
• With Package Weight: Approx. 1206 g (2.66 lb.)
• General Function: Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Heater: Yes
• Cable Length: 0.31 m (1.02 ft.)
