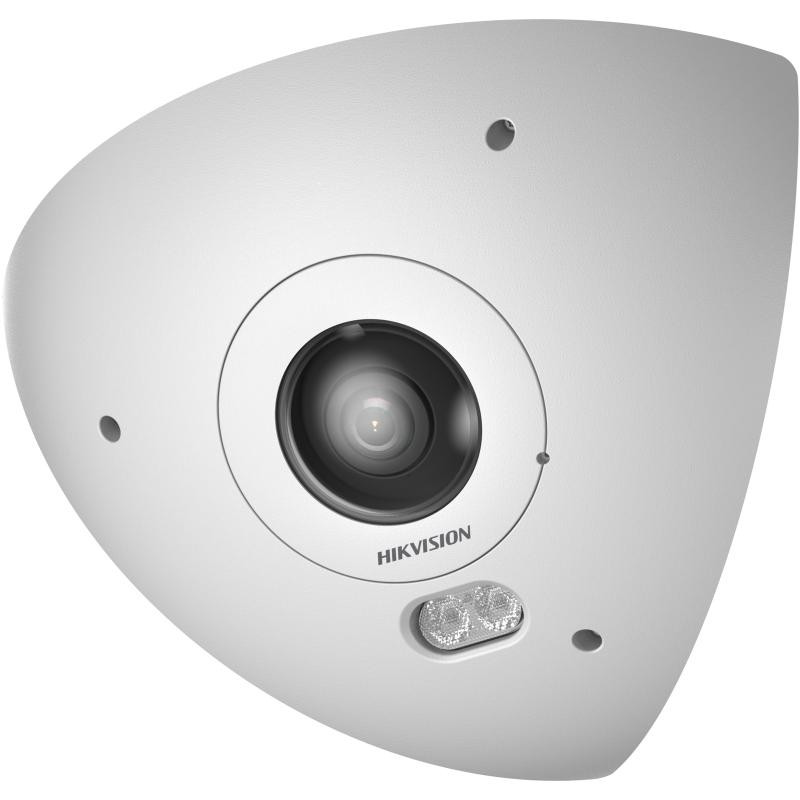

Hikvision 6 MP DeepinView Fisheye Network Camera - DS-2CD6W65G1-IVS(1.16mm)

• Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
• Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
• Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
• Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
• High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
• Each image is clear and detailed
• Supports controlling lens remotely for physical mask function
• Supports blue indicator light to show the device working status
• Water and dust resistant (IP67) and vandal resistant (IK10)
• Adopts anti-ligature design
• 2 mm model: Hardware decoding exclusively in fisheye+ePTZ mode, without smart features/HEOP/software decoding
• 2 mm model: Channel 2 syncs image settings with Channel 1 (no separate controls)
•

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2560 × 2560
• Min. Illumination: Colour: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 1.16 and 2 mm optional
• Focal Length & FOV:

1.16 mm: horizontal FOV 180°, vertical FOV 180°

2 mm: horizontal FOV 101°, vertical FOV 101°

• Iris Type: Fixed
• Aperture: F2.25
• Depth of Field:

• m: 0.2 m to ∞

2 mm: 1 m to ∞

DORI

• DORI:

• m: D: 23.2 m, O: 9.2 m, R: 4.6 m, I: 2.3 m

2 mm: D: 50 m, O: 20 m, R: 10 m, I: 5 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 15 m
• Supplement Light Number:  2
• IR Wavelength: 940 nm
• Smart Supplement Light: Yes

General

• Power:

12 VDC ± 20%, 0.75 A, max. 9 W, two-core terminal block,

PoE: IEEE 802.3af, Class 3, max. 10 W

• Material: Metal
• Dimension: 73 mm × 199.67 mm × 137.57 mm (8.4" × 7.86" × 5.42")
• Package Dimension: 255 mm × 255 mm × 190 mm (8.4" × 7.86" × 5.42")
• 610 g (1.34 lb.)
• With Package Weight: 1904 g (4.20 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding
• Cable Length: 31 m (1.02 ft.)
