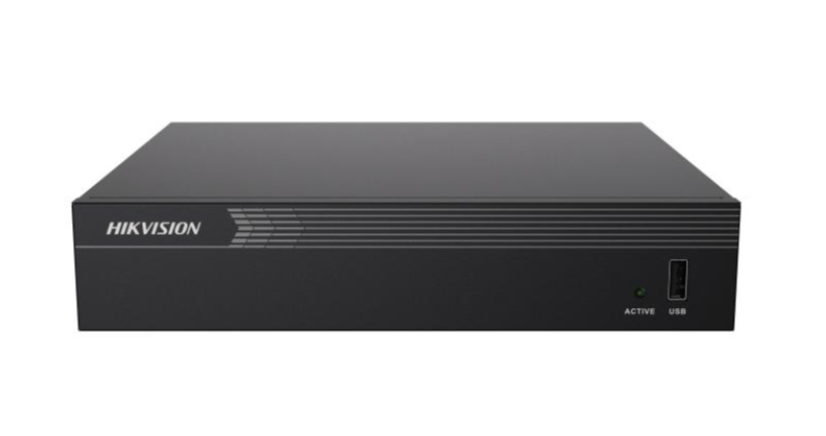

Hikvision 6 Ports LED Controller - DS-DT20C-01HI06NO

• Adopts the rackmount chassis of 1 U height and half width and industrial grade chassis system.
• Provides indicators on the front panel to indicate the power status.
• Supports 1 channel of HDMI 1.4 video signal input. The resolution is 1920 × 1200@60 Hz.
• Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
• Supports the RGB and YUV 444 image loading output without image quality loss.
• Supports 6 channels of loading output with the maximum loading capacity of 3.9 MP. The maximum width is 5120 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
• Supports input of mixed HDMI audio and video stream, and 3.5mm audio output.
• Supports full-screen zoom and custom zoom for video signal input.
• Supports cascading management and unified control of multiple LED controllers through the network.
• Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
• Supports custom EDID settings.
• Supports hot backup and backup between devices and network ports.
• Supports custom cable alignment without rectangular frame limit.
• Supports the operation through the client or the LED controller web page.
• Supports displaying the last frame when the signal is lost.
• Supports configuring and changing the background.
• Supports configuring the screen saver and startup logo.
• Supports configuring the screen dehumidification.
• Supports using the remote control to control the screen to display the remote UI menu.
• Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
• Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
• Supports the HDR output to greatly enhance the image quality of the display, make the picture color more real and vivid, and make the details clearer.
• Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
• Supports eye protection mode to protect the vision of the viewer.
• Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
• Supports viewing the loading relationship between the device and LED screen.
• Supports viewing abnormal screen positioning during running.
• Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
• Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
• Supports connecting to the central control device and IoT device through RS-485 port.
• Supports docking device command and managing device by using the control network port and the protocols such as SDK and OTAP.
• Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.

DATASHEET

Processing Performance

• Brightness Control:1 to 100 tunable (level-by-level white balance)
• Frame Frequency: 25 Hz to 60 Hz
• Grey Level: 256
• Display Color: 16 MP
• Processing Depth: 8 bit
• Image Scaling: Supported

Product Model

• Product Model: DS-DT20C-01HI06NO

Chassis

• Chassis Height: 1 U
• Chassis Width: Half-width

Product Type

• Product Type: LED controller (The LED controller supports controlling only the receiving cards that use the hub ports.)

LED Controller Power

• Average Consumption: ≤ 14 W
• Power Interface Quantity: 1
• Power Interface: 100 to 240 VAC, 50/60 Hz

Video Wall

• Background Images: 2
• Background Resolution: Min.: 640 × 480, Max.: 1920 × 1200
• Background Format: JGP/JPEG

General

• Working Temperature: -10°C to 50°C
• Storage Humidity: 10% to 90%
• Working Humidity: 10% to 90%
• Storage Temperature: -10°C to 50°C
• Packaging Size (W × H × D): 353 mm × 89 mm × 237 mm (13.90 inch × 3.50 inch × 9.33 inch)
• Net Weight: 0.87 kg (1.92 lb.)
• Gross Weight: 1.55 kg (3.42 lb.)
• Dimensions (W × H × D): 210 mm × 42 mm × 177.4 mm (8.27 inch × 1.65 inch × 6.98 inch)
• Packing List: 1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control

Audio

• Audio Input Interfaces: 1
• Audio Input Interface Type: 1 channel of embedded HDMI input
• Audio Output Interfaces: 1
• Audio Output Interface Type: 3.5 mm audio output

Video Input

• Video Input Interfaces: 1
• Video Input Interface Type: HDMI 1.4
• Max. Video Input Resolution: 1080P

• Video Input Resolution
  • HDMI 1.4 port
  • resolution: 1920 × 1200@60 Hz
  • resolution: 320 × 180@60 Hz
  • Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
  • width: 320 to 3840, alignment: 2 alignment
  • height: 180 to 3840, alignment: 1 alignment
  • Supports HDCP 1.4
  • Interlacing signal input is not supported.

• Video Input Processing Feature

• Processing depth: 8 bit
• Sampling format:
• RGB: 444
• YUV: 444
• YUV: 422

Video Output

• Max. Video Output Resolution: 3.9 Million
• Loading Capacity for Video Output to LED: Single mesh port with load: 650000, Width 320-5120; Height 64-5120;
• LED Loading Interfaces: 6
• LED Loading Interface Type: RJ-45

Wireless

• Remote Control: Supports IR remote control

Front Panel

• USB Port: 1 channel of USB 2.0
• Indicator: Active: The device is running
• Power Switch: On: The device is started and running. Off: The device is not powered on or is not started.

Control Interface

• Control Network Port

• 2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
• Connects to the external network and supports multi-device network cascade management.

• IR Input

• 1 × 3.5 mm connector
• Supports the access of IR remote control.

• Serial Interface

• 1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact)
• Baud rate: 115200, data bit: 8
