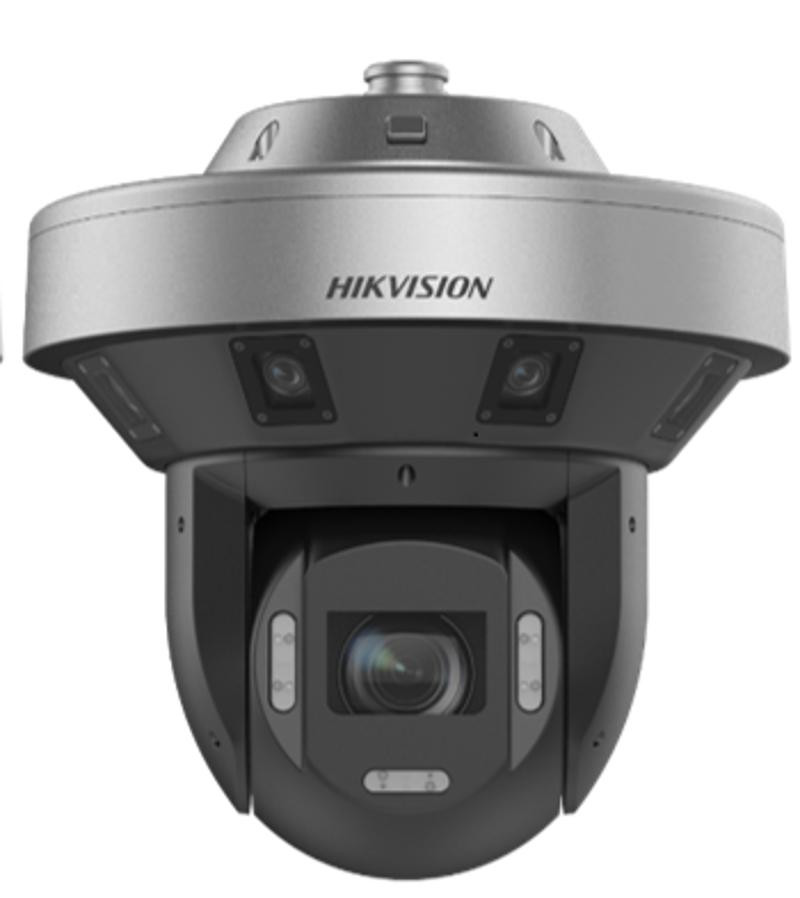

Hikvision 64MP 360° Panoramic & PTZ Camera - DS-2DP8A845IXG1-LF/864(F0)

• High quality imaging with 64 MP resolution, up to 2 × 8160 × 3616 @30 fps for panoramic channels
• True 360° coverage with eight F1.0 lenses, no blind spots in the panoramas
• Excellent low-light performance with DarkFighter 2.0 technology
• 45 × optical zoom and 16 × digital zoom provide close up views over expansive areas
• Expansive night view with up to 500 m IR distance
• With one click on the panoramic channel, the PTZ channel shows the details automatically
• Continous and stable manual tracking, auto-tracking, and panorama tracking
• Automatic switch between multiple targets
• Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

Datasheet

Specifications

Camera

• Image Sensor: [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
• Max. Resolution: 8160 × 3616
• Min. Illumination;

[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON);

[PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed: 1 s to 1/30000 s
• Day & Night: IR cut filter
• Zoom: [PTZ channel] 45 × optical, 16 × digital
• Slow Shutter: Yes

Lens

• Focal Length: [Panoramic channel] 2mm; [PTZ channel] 7.1-320mm
• FOV: [Panoramic channel] Horizontal FOV 360°, vertical FOV 110°；[PTZ channel]Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
• Focus: Auto, semi-auto, manual, rapid focus
• Aperture: [Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.5
• Zoom Speed: [PTZ channel] Approx. 5.6 s

Illuminator

• Supplement Light Type: Laser
• Supplement Light Range: Up to 500 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s
• Proportional Pan: [Panoramic channel]: no; [PTZ channel]: yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
• Park Action: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Power-off Memory: Yes

General

• Power: 36 VDC±20%, max. 135 W (including max. 12 W for IR)
• Dimension: Ø 427.6 mm x 425.9 mm(Ø16.8" × 16.7")
• Weight: Approx. 14.6kg
• Material: ADC12
• Operating Condition: -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
• Wiper: No
• Demist: Yes
