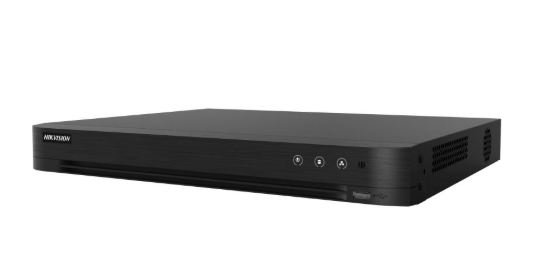

Hikvision 8-ch 1080p 1U H.265 AcuSense DVR - iDS-7208HQHI-M2/XT

• 8 channels and 2 HDD 1U AcuSense DVR
• Supports 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Support 4-ch AcuSearch Technology
• Efficient H.265 pro+ compression technology
• Encoding ability up to 3K/5M Lite @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 12-ch network cameras can be connected
• Support All channels Motion Detection Technology
• Support All channels HDTVI Two-Way Audio Technology

DATASHEET

Specification

Facial Recognition

• Face Picture Comparison: Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)
• Face Picture Library: Up to 16 face picture libraries

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis: Up to 4-ch

Video and Audio

• IP Video Input:4-ch (up to 12-ch), Up to 6 MP resolution
• Analog Video Input;

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input: 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input: 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input: 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• CVBS Input: PAL/NTSC
• CVBS Output;

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI Output;

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• VGA Output;

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• Audio Input: 1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 8-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution;

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate;

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate: 32 Kbps to 6 Mbps
• Dual-stream: Support main stream or sub stream
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Network

• Remote Connection: 64
• Total Bandwidth: 96 Mbps
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA: 2 SATA interface, up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface;

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 2.0

• Alarm In/Out: N/A (optional to support)

General

• Power Supply: 12 VDC, 2.5 A
• Consumption: ≤ 30 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
• Weight: ≤ 1.78 kg (3.9 lb)
