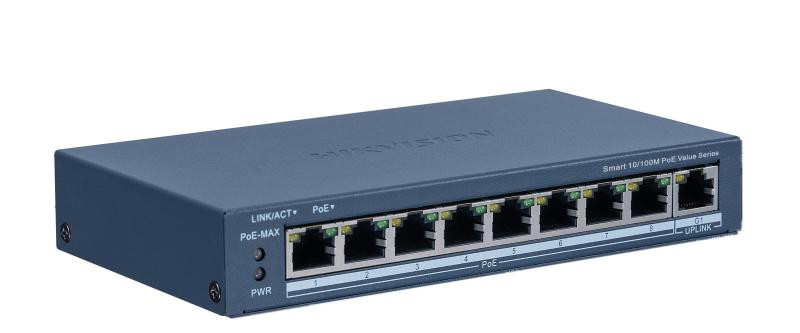

Hikvision 8 Port Fast Ethernet Smart POE Switch - DS-3E1309P-EI/M
- 8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 port
- Total PoE Power Budget 60 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Specification
General
- Shell: Metal material, fan-free design
- Net Weight: 0.4 kg (0.9 lb)
- Gross Weight: 0.9 kg (2.0 lb)
- Dimensions (W × H × D): 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 54VDC, 1.2A
- Installation Mode: Desk-Mounted, Wall-Mounted
- Max. Power Consumption: 65 W
- Power Consumption in Idle: 5 W
- Surge Protection: 6 kV
Network Parameters
- Ports: 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
- MAC Address Table: 8 K
- Switching Capacity:
Whole-Device Performance: 5.6 Gbps
Port Performance: 3.6 Gbps
- Packet Forwarding Rate
Whole-Device Performance: 4.17 Mpps
Port Performance: 2.68 Mpps
- Internal Cache: 4 Mbits
Data Sheet(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
