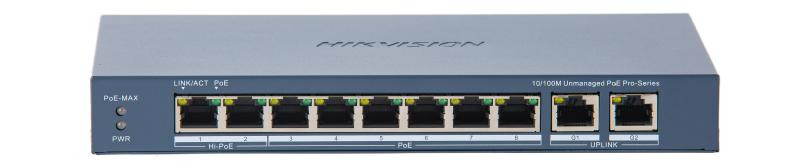

Hikvision 8 Port Fast Ethernet Unmanaged POE Switch - DS-3E0310HP-E(C)
- 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- IEEE 802.3bt standard Hi-PoE, max. 90 W for one port.
- Up to 300 m long range PoE transmission.
- Port isolation to improve network security.
- 6 KV surge protection to improve reliability in harsh environment.
- PoE watchdog to auto-detect and restart cameras that do not respond
Specification
General
- Shell: Metal material, fan-free design
- Net Weight: 0.56 kg (1.23 lb)
- Gross Weight: 1.27 kg (2.79 lb)
- Dimensions (W × H × D): 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 54 VDC,2.22 A
- Max. Power Consumption: 120 W
- Power Consumption in Idle: < 10 W
- Installation Mode: Desk-Mounted
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- MAC Address Table: 4 K
- Switching Capacity: 5.6 Gbps
- Packet Forwarding Rate: 4.17Mpps
- Internal Cache: 2Mbits
