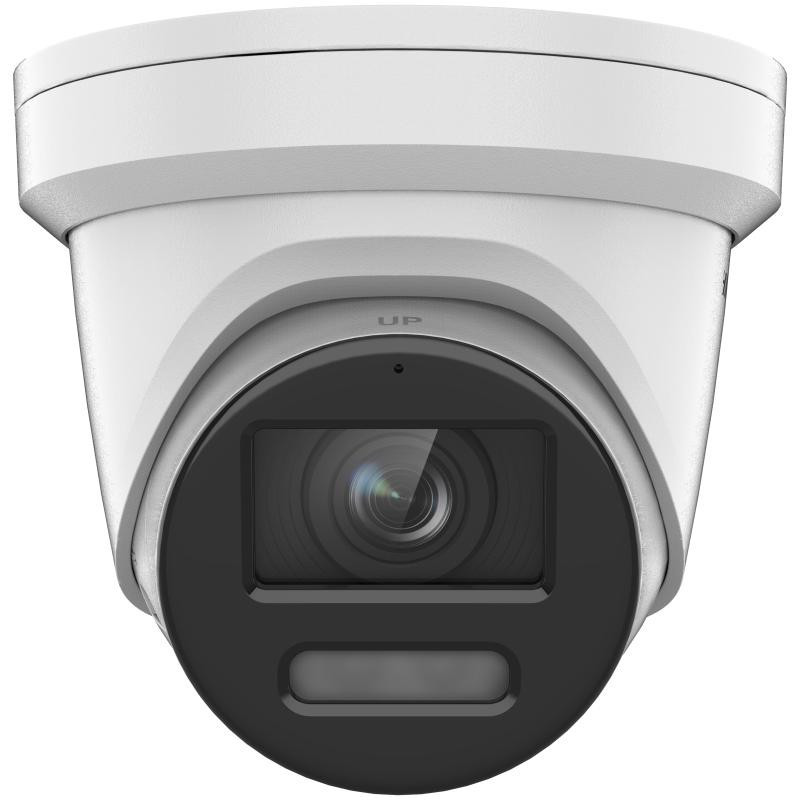

Hikvision 8 MP ColorVu Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Built-in microphone for real-time audio security(-U)
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colourful imaging
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/1.2″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Colour：0.0005 Lux @ (F1.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Colour imaging
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°

4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 3.1 m to ∞

4 mm: 3.6 m to ∞

DORI

• DORI:

• mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m

4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type:  White Light
• Supplement Light Range:  Up to 30 m
• Smart Supplement Light:  Yes

General

• Power:

-L:

12 VDC, 0.42 A, max. 5 W

PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W

-LU:

12 VDC, 0.46 A, max. 5.5 W

PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

• Material: Cover: metal, main body: metal
• Dimension: Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7")
• Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
• Weight: 870 g (1.9 lb.)
• With Package Weight: 1160 g (2.6 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start-up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function: Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
• Software Reset: Yes
