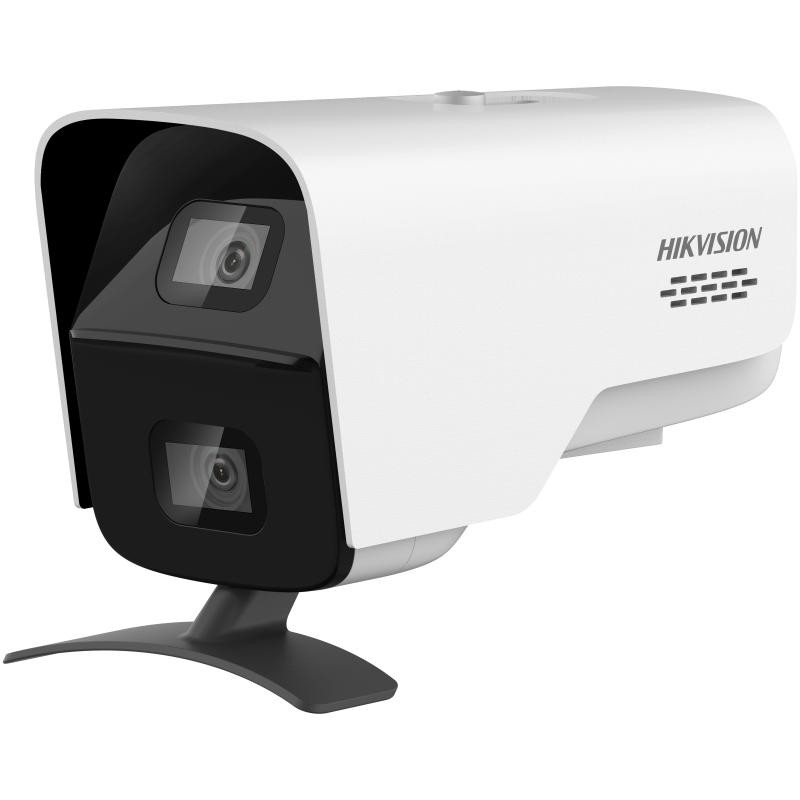

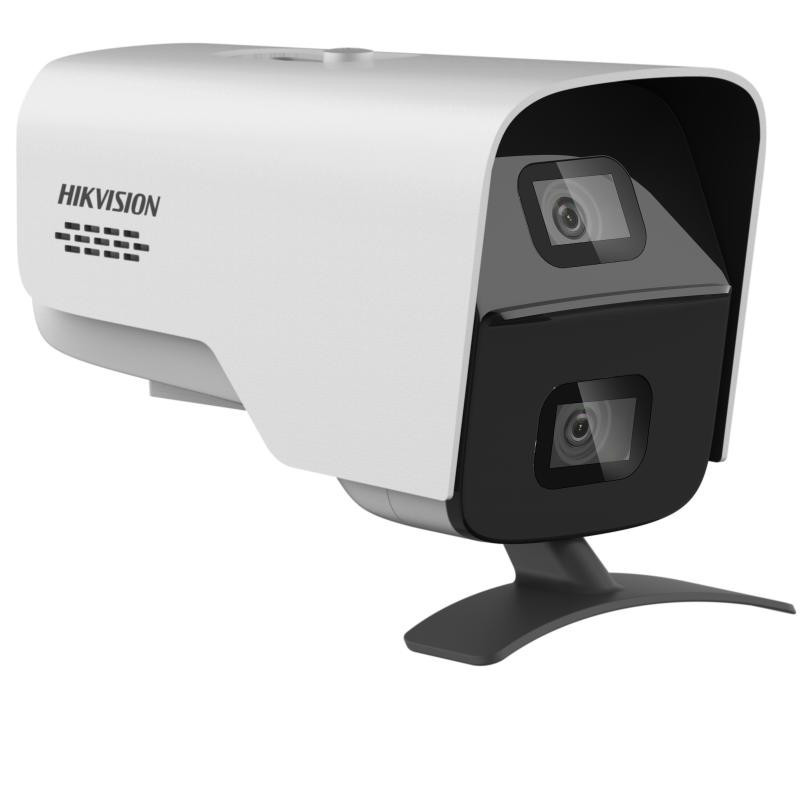

Hikvision 8MP DeepinView High-Rise Littering Detection Camera - iDS-2CD8A87G0P/PW(6mm)
- High quality imaging with dual lens stitching design
- Clear imaging against strong back light due to 120 dB WDR technology
- Water and dust resistant (IP67)
- Built-in heater to ensure clear image under rainy or snowy weather
- Dedicated algorithm of High-Rise Littering Detection
Specification
Camera
- Image Sensor: 1/1.8" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON)
- Shutter Time: 1 s to 1/100,000 s
Lens
- Lens Type: Fixed focal lens, 6 mm
- Focal Length & FOV: 6 mm, horizontal FOV 51°, vertical FOV 55.2°, diagonal FOV 73°
- Iris Type: Fixed
- Aperture: F1.0
DORI
- DORI:
- mm: D (Detect): 116 m, O (Observe): 46 m, R (Recognize): 23 m, I (Identify): 11 m
The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
General
- Power:
12 VDC ± 20%, 0.9 A, max. 10.8 W, reverse polarity protection, Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3af, Class 3, max. 12.5 W
- Material: Metal and plastic
- Dimension: 142.7 mm × 111.9 mm × 199.8 mm (5.62" × 4.41" × 7.87")
- Package Dimension: 275 mm × 205 mm × 173 mm (10.83" × 8.07" × 6.81")
- Approx. 1810 g (3.99 lb.)
- With Package Weight: Approx. 990 g (2.18 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Heartbeat, flash log, password reset via email, pixel counter, password protection, one-key reset, anti-banding
