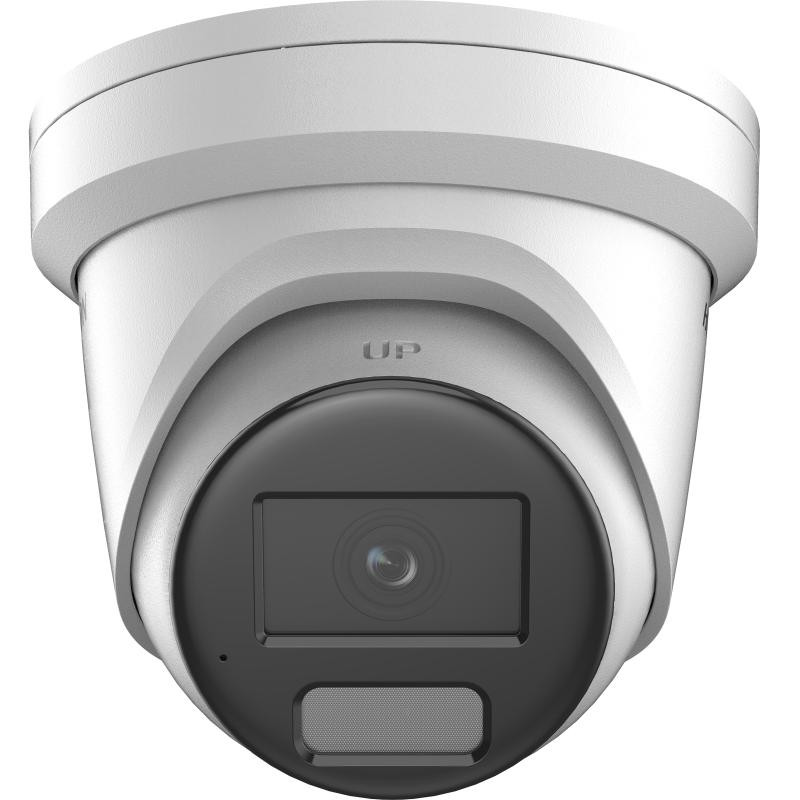

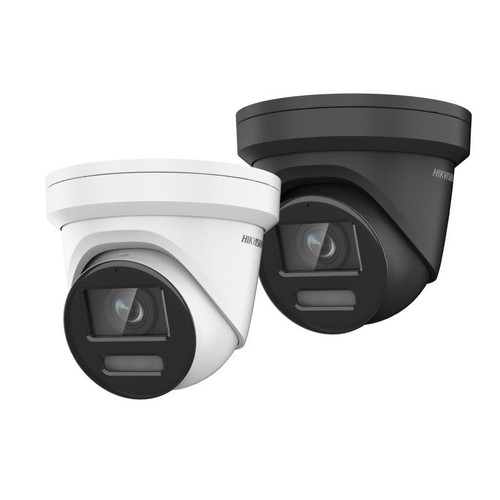

Hikvision 8 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Colour: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°

4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 3.3 m to ∞

4 mm: 3.8 m to ∞

DORI

• DORI:

• mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m

4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

General

• Power:

12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 8 W

• Material:

Cover: Metal, main body: Metal

• Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
• Weight: 770 g (1.7 lb.)
• With Package Weight: 1040 g (2.3 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
