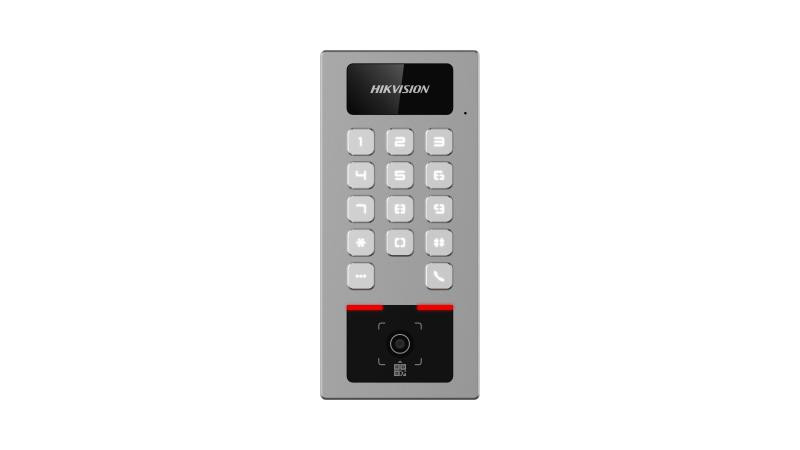

Hikvision Access Control Terminal - DS-K1T502DBWX-QR
- Manage access control and intercom functions in one device
- IP65 & IK09 protections, as well as increased stability with zinc alloy materials
- Supports multiple authentication methods (card, PIN, QR code, etc.)
- Remote control via the Hik-Connect mobile app
- Connects to external access controller via Wiegand protocol
- Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
- RS-485 communication for connecting external card reader and calling elevator
- Supports AP mode
- Supports commiunication with smart phones via bluetooth to open the door
- Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
- Supports up to 256 GB SD card memory
- Supports PIN settings under platform mode and local mode
- Setting the priority of wired network and wireless network is available
- Supports installing QR code peripheral, which helps device supporting dynamic QR code authentication
DATASHEET
Specification
Network
- Wired network: 10/100 Mbps self adaptive
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
- Bluetooth: Support
Interface
- Network interface: 1 RJ-45 10/100 Mbps self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 1
- Alarm output: 1
- TAMPER: 1
- RS-485: 1,RS-485 (Half duplex,HIKVISION）
- Wiegand: 1, Wiegand (Hik 26bit,Hik 34bit)
- SD card slot: null
Authentication
- Card type: M1 card;M1 card content;DESfire card;Felica card;CPU card No.
General
- Power supply: 12 VDC to 24 VDC, 1 A
- Power consumption: ≤12 W
- Working temperature: -40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
- Protective level: IK09, IP65
- Built-in access controller: Support
Function
- Hik-Connect: Support
