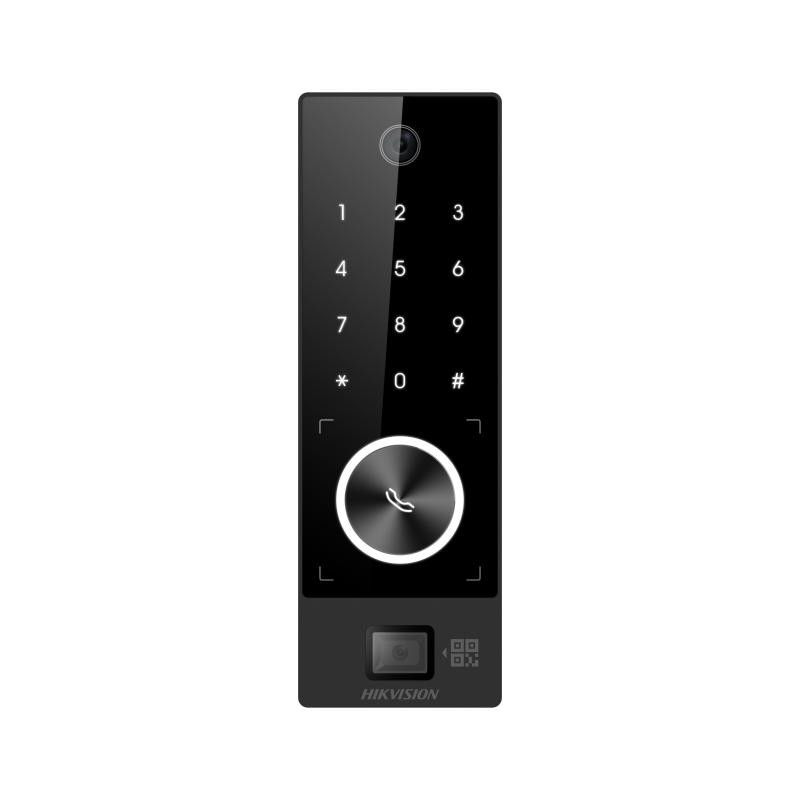

Hikvision Access Control Terminal - DS-K1T510EBWX-QRE1

• Manage access control and intercom functions in one device
• Supports multiple authentication methods (EM card, PIN Code, QR code, etc.)
• Remote control via the Hik-Connect mobile app
• Two-way audio with client software, indoor station, and main station
• Supports AP mode. Supports mobile Web and PC Web for configuration
• Supports powered by 12 VDC or PoE and supports powering for device and door lock
• Supports WDR

DATASHEET

Specification

System

• Operating system: Linux

Video

• Lens: ×1
• Video standard: PAL (Default) and NTSC

Network

• Wired network: 10/100 Mbps self adaptive
• Wi-Fi: Support
• Bluetooth: Support

Interface

• PoE: IEEE802.3at, standard PoE
• Network interface: 1
• Wiegand: 1, supports Wiegand input, single direction
• Lock control: 1
• Exit button: 1
• Door contact input: 1
• TAMPER: 1

Capacity

• User capacity: 1000
• Card capacity: 3000
• Face capacity: 1000
• Event capacity: 150000

Authentication

• Card type: EM card
• Card reading frequency: 125 KHz
• Face recognition duration: ＜ 0.33 s
• Face recognition accuracy rate: ＞99%
• Face recognition distance: 0.3 to 1.5 m

General

• Button: No physical call button
• Power supply: 12 VDC, 1 A, standard PoE
• Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity: 10 to 90% (No condensing)
• Language: Arabic, English, French, Indonesian, Italian, Portuguese (Europe), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese (standard), Dutch, Turkish
• Dimensions: 165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
• Installation: Wall mounting
• Protective level: IP65
• Weight;

  Net weight: 0.2 kg (0.44 lb)

  Rough weight: 0.6 kg (1.32 lb)

Function

• QR code recognition: Support scan QR code via camera
• Face anti-spoofing: Support
• Two-way audio: Support
• Audio prompt: Support
• Time synchronization: Support
