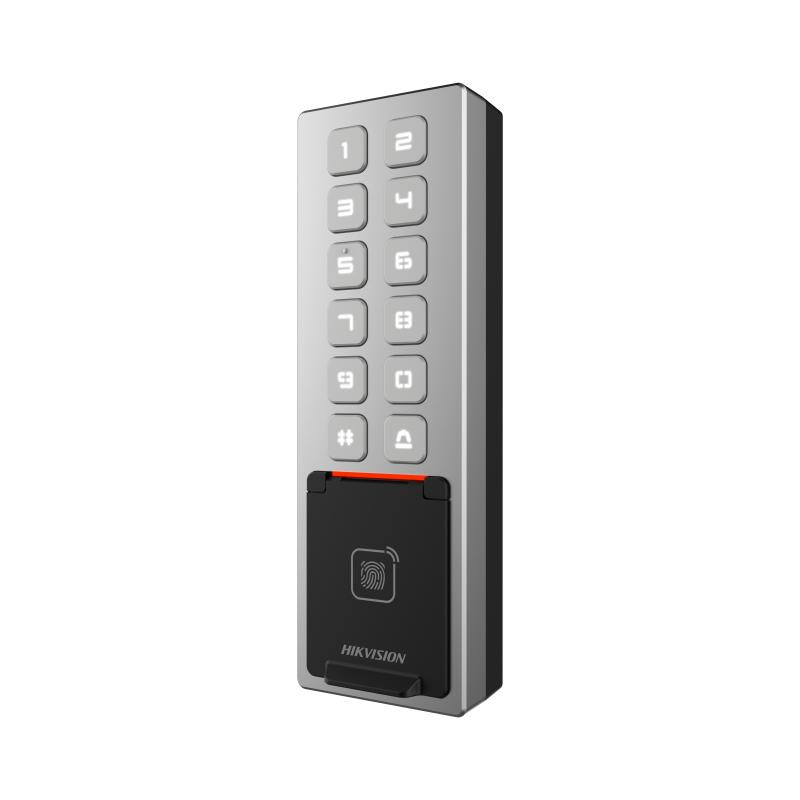

Hikvision Access Control Terminal - DS-K1T805EBFWX
- High protective level: IP65 and IK08
- Slim and flexible design with metal
- 3,000 fingerprints, 10,000 cards and 100,000 events storage
- Built-in card reader for EM card
- Supports operation by mobile App (Hik-Connect)
- Supports AP configuration, configuration via PC web and mobile web are available
- Supports multiple authentication types: card, fingerprint, PIN, and bluetooth
DATASHEET
Specification
System
- Operating system: Linux
Audio
Audio output: 1 built-in buzzer
Network
- Wired network: 10/100 Mbps self adaptive
- Wi-Fi: 2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i
- Bluetooth: Support
Interface
- RS-485: 1, supports OSDP
- Network interface: 1
- Wiegand: Wiegand 26/34
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
Capacity
- Card capacity: 10,000
- Fingerprint capacity: 3000
- Event capacity: 100,000
Authentication
- Card type: EM card
- Card reading distance: 0 to 1 cm
- Card reading duration: ＜ 1 s
- Fingerprint module: Optical fingerprint module
- Fingerprint comparing mode: 1:1 and 1:N
- Fingerprint recognition duration: ＜ 1 s
General
- Power supply: 12 VDC/1 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0% to 90% (no condensing)
- Dimensions: 57.7 mm × 177 mm × 34.6 mm (2.3" × 7.0" × 1.4")
- Power consumption: ≤ 12 W
- Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, Ukrainian, and Russian
Function
- Hik-Connect: Support
- Configuration via Web Browser: Support PC web configuration and mobile web operation
