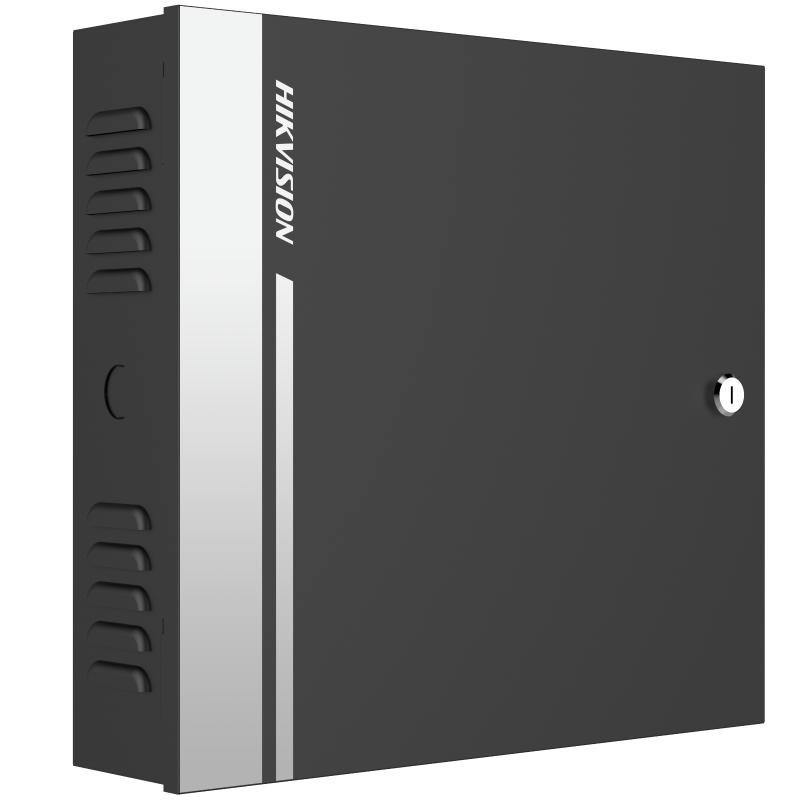

Hikvision Access Controller - Supports Four Doors Access Control - DS-K2814
- Supports four doors access control
- Supports multi-door interlocking function, anti-passback function, multi-card function, first person function, super card and super password function
- Supports alarm event upload
- Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
- Supports standby battery
- Data can be saved when the access controller is powered off
DATASHEET
Specification
Network
- Wired network: 10 M/100 M self adaptive
Interface
- Network interface: 1
- Lock control: 4
- Exit button: 4
- Door contact input: 4
- Alarm input: 3
- Alarm output: 4
- TAMPER: 1
- RS-485: 1
- Wiegand: 4， Wiegand 26/34
Capacity
- Card capacity: 10,000
- Event capacity: 50,000
General
- Power supply: 100 to 240 VAC
- Battery: Backup battery connection available
- Power consumption;
With load: ≤ 100 w
Without load: ≤ 4 w
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 10% to 90% (no condensing)
- Dimensions: 370 mm × 345 mm × 90 mm (14.6" × 13.6" × 3.5")
