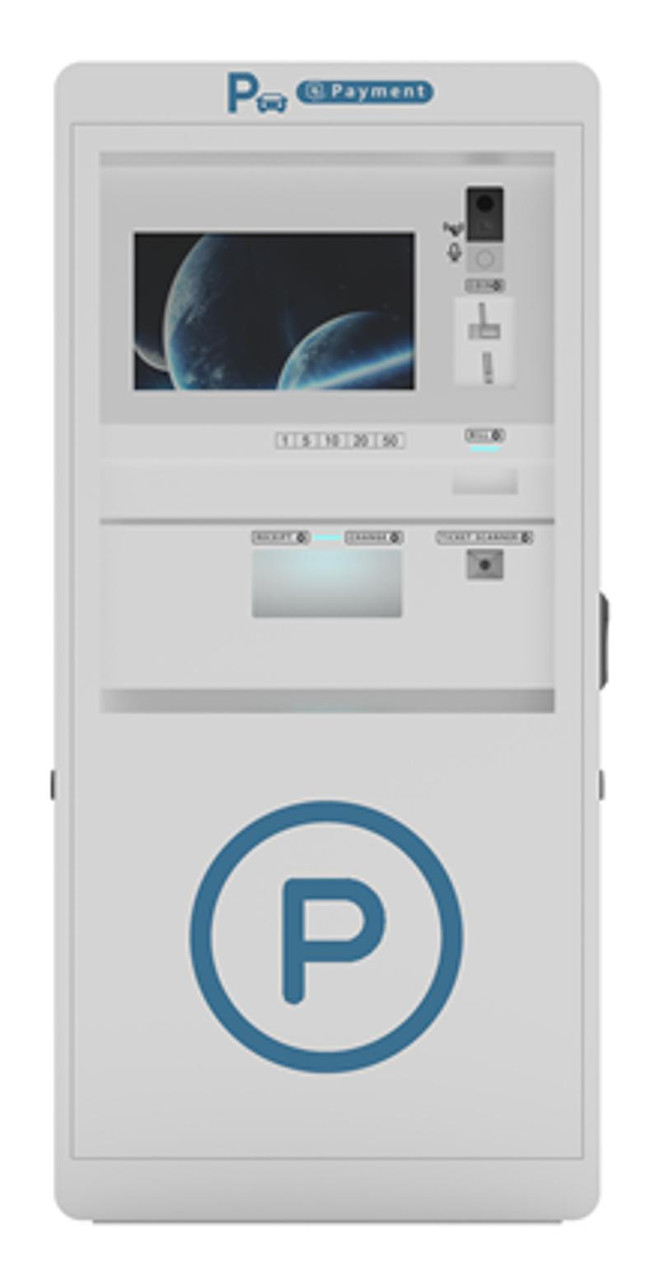

Hikvision Automatic Payment Machine - DS-TPP427
- Integrated voucher printer, scanner, contactless card reader, banknote feeder, coin slot, coin change and other functions;
- improve the efficiency of charging, improve the level of information management, and is suitable for all kinds of charging parking places.
- Use SCN bill and coin module, up to 99% recognition accuracy rate
Specification
Main LCD
- Panel Type: a-Si TFT-LCD
- Screen Dimensions: 18.5 inch
- Display Color: 16.7 M
- Screen Ratio: 16:9
- Resolution: 1366 × 768, SXGA
- Panel Brightness: 1000 cd/m² (Typ.)
- Contrast: 1000:1 (Typ.) (transmission)
- Touch Resolution: 32767 × 32767
- Touch Accuracy: < 1.5 mm (central area), < 3.2 mm (edge area)
- Response Time: < 16 ms
- Touch Intensity: < 85 g
- Touch Times: No limit
- Service Life: 30000 h
- Transmittance: > 95%
Coin Collection
- Coin In Mode: From top/side
- Receiving Type: Max. 3
- Coin Collection Box Capacity: 137 mm × 167 mm × 55 mm (E.g., 800 × RMB 1 coin)
- Receiving Speed: 2 coins/s
- Coin Classification Channel: 3 channels optional
- Coin Dimensions: φ 15 to 30 mm
- Security Certificate: CE, RoHS
Coin Change
- Coin Out Mode: Orbital coin out
- Coin Out Type: Max. 2
- Coin Change Box Capacity: Ultra-large capacity (E.g., 1300 × RMB 1 coin)
- Service Life: 3,000,000 coins, no internal spring, no quick-wear part, durable
Printer
- Print Mode: Thermal line printer
- Print Speed: Max. 150 mm/s
- Print Direction: One-way friction paper feed
- Paper Width: 80 mm
- Max. Width of Winding Shaft: Max. 100 mm
- Print Density: 8 dots/mm
- Valid Print Width: 76 mm
General
- Working Environment: Working temperature: -25 ℃ to 50 ℃ (-13 °F to 122 °F), humidity: 10% to 90%
- Storage Temperature and Humidity: Storage temperature: -25 ℃ to 70 ℃ (-13 °F to 158 °F), humidity: 10% to 90%
- Working Voltage: 220 VAC
- Power Consumption: < 200 W
- Dimensions: 800 × 1706 × 695 mm (31.5 × 61.2 × 27.4 inch)
- Dimensions (with Package): 900 × 1930 × 800 mm (35.4 × 76.0 × 31.5 inch)
- 195 kg (429.9 lb.)
- Weight (with Package): 220 kg (485.0 lb.)
