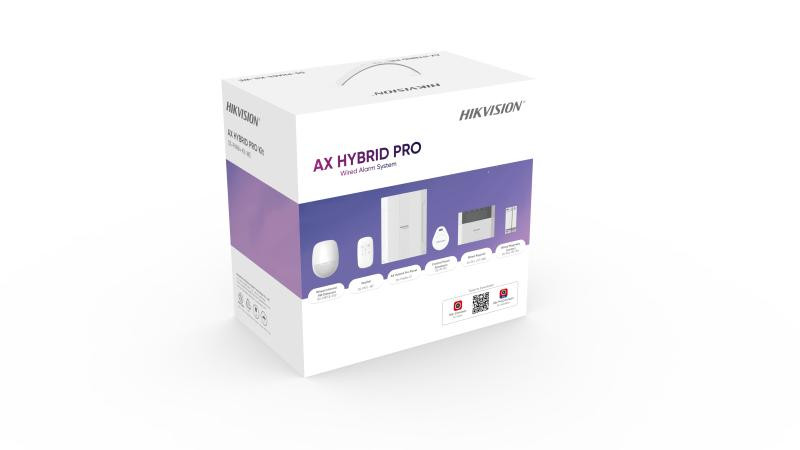

Hikvision AX Hybrid Pro Kit（868MHz - DS-PHA64-Kit-WE(B)
- DS-PHA64-LP(B) *1
- DS-PK1-LRT-HWE *1
- DS-PD1-MC-WS *1
- DS-PDP18-EG2(B) *2
- DS-PKF1-WE *1
- DS-PT-M1 *2
Software features
- Zones: 64 (8 On-board zones, max 8 wired PIRCAM)
- Area: 32
- User:
Installer: 1
Administrator: 1
Operator: 62
- SMS notification: Support (with GPRS/3G/4G module)
- Onboard video clips: 4
- ARC protocol:
ISAPI: Supports iVMS-4200 client software and web client
Cloud P2P: Supports cloud P2P privacy protocol
DC-09: ARC accessible（ADM-CID/SIA-DCS ）
CSV-IP: Supports CSV-IP
ISUP: Supports ISUP 5.0
- Programming tools: Web/iVMS-4200/Hik-Partner Pro/Keypad
- Firmware upgrade: Web/iVMS-4200/Hik-ProConnect/Hik-Partner Pro
- End of Line Resistance: Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K
Hardware features
- Alarm input: 64 (Including 8 on-board zones)
- Alarm output: 64 (Including 2 on-board relay outputs and 2 on-board I/O outputs)
- Power Output:
- Bell: maximum 12V 1.2A
- AUX: maximum 12V 1.5A
- 3/4G on board: Optional
- GPRS on board: Optional
- Wi-Fi: 802.11b/g/n (2.4GHz)
- Bus: 1 Speed-X bus
- Sounder output: 1 Wired on-board sounder output
- Tamper-Proof:
1 switch to detect removal from mounting
1 switch to detect front cover open
- Network interface: 1 RJ45 10M/100M Ethernet interface
Display
- Indicator:
4 On-board LEDs:
① 1 AC power LED indicator (Green)
② 1 System status LED indicator (Green/Red)
③ 1 PSTN status LED indicator (Green/Red)
④ 1 Mobile communication status LED indicator (Green/Red
Electrical characteristics
- Power interface: 100 to 240 VAC（on-board power transformer）
- Power Consumption:
- 220V power supply
① With an alarm: 2A, 32W
② Without an alarm: 250mA, 4W
- 13.5V battery supply
① With an alarm: 1.7A, 25W
② Without an alarm: 200mA, 2.7W
- Battery type: Lead acid battery (12V 7Ah, battery is not included by default)
- Battery life span: Up to 36hrs
General
- Operation temperature: -10°C to 40°C
- Operation humidity: 10% to 90%
- Shell material: Plastic
- Color: White
- Dimension (WxHxD): 261 mm × 199 mm × 86.4 mm
- 997 g
Device management
- Tag: 64
- Keyfob: 64
- Keypad: 8
- Wireless sounder: 16
