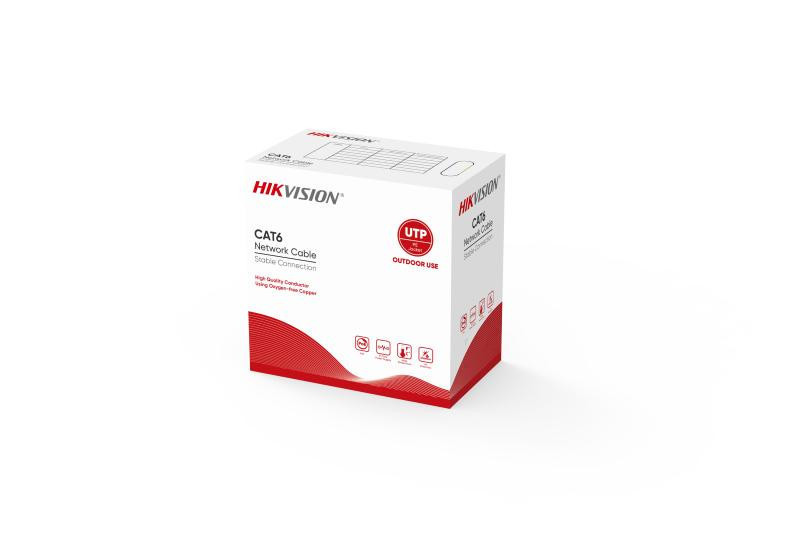

Hikvision CAT6 U/UTP Network Cable (Solid Copper, 0.5mm) -DS-1LN6UZC0
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Compliant with RoHS 2.0.
Specification
General
- Category: Cat 6
- Structure: U/UTP
- Fire Resistance: CPR Fca
- Usage Scenario: Indoor
Conduct
- Conductor Material: Solid-Bare Copper
- Conductor Diameter: 0.515 ± 0.005 mm 24AWG
Insulation
- Insulation Diameter: 0.88 ± 0.05 mm
Sheath
- Sheath Material: PVC
- Sheath Color: Grey
Structure
- Length: 305 ± 1.5 m
- Rip Cord: Yes
- Separator: Yes
DATA SHEET(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
