Hikvision Cat6A UTP Outdoor Network Cable For Electrical Performance - DS-1LN6AUSPE
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
- Compliant with RoHS 2.0.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Excellent performance in the alien crosstalk test (6-around-1 cable test).
Specification
General
- Category: Cat 6A
- Structure: U/UTP
- Fire Resistance: CPR Fca
- Usage Scenario: Outdoor
Conduct
- Conductor Material: Solid-Bare Copper
- Conductor Diameter: 0.565± 0.005 mm 23AWG
Insulation
- Insulation Diameter: 1.12 ± 0.1 mm
Sheath
- Sheath Material: PE
- Sheath Color: Black

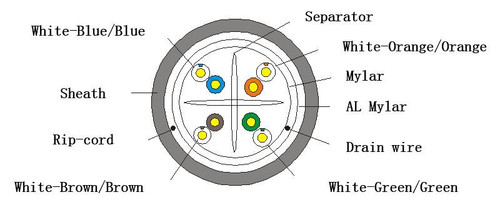

Structure
- Length: 305 ± 1.5 m
- Rip Cord: Yes
- Separator: Yes
DATA SHEET(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
