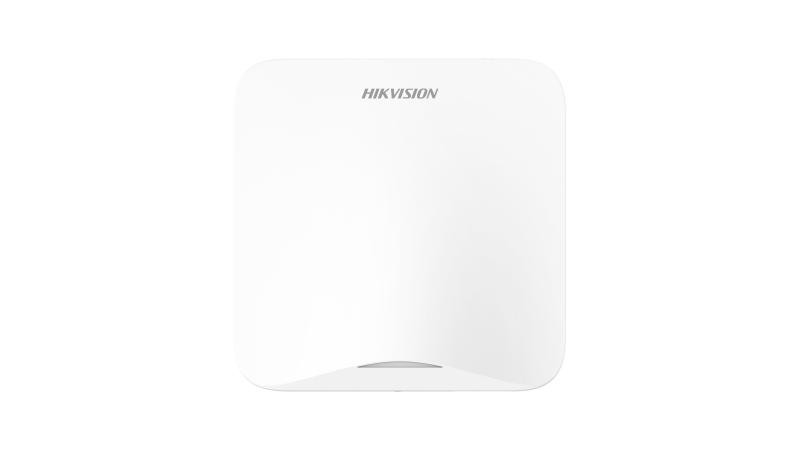

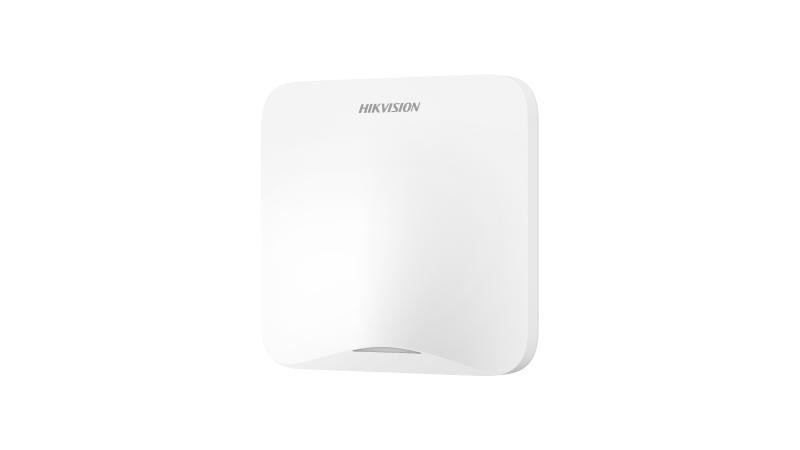

Hikvision Control Panel - DS-PA201PS-32WE
- Simple and elegant appearance design
- Wi-Fi, GPRS, 4G network for cloud communication
- Friendly app interface makes installation and use easier
- Up to 2000 m radio signal transmission range in open space
Specification
Capacity
- ARC: 1
- Installer; 3
- User: 12
- Areas: 4
- Wireless zones: 16
- Wireless keypads: 4
- Wireless sounders: 4
- Admin: 1
- Logs: 1000
- Wireless keyfobs: 16
Communication
- Transmission technology: 868.0-868.6 MHz
- Transmission range (free space): up to 2,000 m
- Maximum effective radiated power (ERP): 25 mW max
- Radio signal modulation: 2GFSK
- Encryption: AES-128
- Ethernet: 1 8P8C socket
- Ethernet speed: ≤10Mbps
- Wi-Fi: 802.11 b/g/n
- Cellular: 4G
- SIM slots: 1
General
- Dimension (W×H×D): 165 x 165 x 37.5 mm
- 410 g
- Operation temperature: -10 °C to +55 °C
- Operation humidity: 10% to 90%
- Shell material: Plastic
