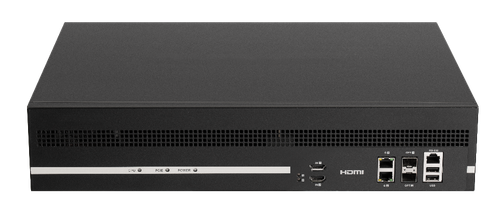

Hikvision DC01 Ultra High Definition Decoder
- Support network camera, NVR, and other devices to serve as network signal source.
- Support 4K (3840 × 2160@30 Hz) UHD video output via HDMI 1.4 output interface.
- Support two audio output methods: embedded HDMI audio output and external audio output.
- Adopt frame synchronization technology to ensure complete synchronization of images from all output interfaces, complete pictures, smooth playback, and without lag, frame loss, tearing or splicing
- Support H.264 and H.265 encoding of input boards, and sub-stream and main stream encoding; the default encoding format is H.264.
- Support network cameras, NVR and other network sources decoding of output boards, sub-stream and main stream decoding including H.264, H.265, Smart264, Smart265, MJPEG, HIK264 and main encapsulation formats such as PS, RTP, TS, ES.
- Support encrypted stream, multi-channel stream, and smart stream decoding, stream editing and switching, and auto switching to the sub stream when the divided window quantity reaches the upper limit.
- Support up to 16 video decoding channels and simultaneously decoding of 16-ch 2 MP video to the video wall.
- Support decoding streams of multiple resolution no more than 32 MP.
- Support rotate mode of front-end cameras decoding and up to 2560 × 1440 decoding output.
Specifications
|
Product Model |
|
|
Product Model |
DC01 |
|
Interface |
|
|
Alarm In |
8-ch alarm in |
|
Alarm Out |
8-ch alarm out |
|
Serial Interface |
RS-232 (RJ45) × 1, RS-485 × 1 |
|
Network Interface |
RJ45 × 1, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface |
|
Video Wall |
|
|
Video Walls |
1 |
|
Video Wall Size |
1 |
|
Layers Per Screen |
1080p × 3 or 4K × 1.5 |
|
Layers |
Layers Per Screen × Output Interface(s) |
|
Split Window |
yes |
|
Scenes |
1 |
|
Scene Auto-Switch Delay |
3 s |
|
Split Screen |
1, 2, 4, 6, 8, 9, 12, 16 |
|
Background Images |
Background color Only |
|
Subtitles |
N/A (optional to support) |
|
Delay of Displaying Local Signal Source on Video Wall |
120 ms |
|
Delay of Displaying Decoded Signal Source on Video Wall |
120 ms |
|
Auto-Switching Plans |
Support 256 auto-switching plans |
|
General |
|
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10％ RH to 90％ RH |
|
Gross Weight |
1.44 kg (3.17 lb) |
|
Power Consumption |
< 15 W |
|
Packing List |
Decoder × 1 |
|
Dimensions (W × H × D) |
220 mm × 148 mm × 45 mm (8.66'' × 5.83'' × 1.77'') |
|
Power Supply |
External 12 VDC |
|
Audio Input |
|
|
Audio Input Interface Type |
HDMI embedded or DB15 to BNC independent audio output |
|
Video Input |
|
|
Video Input Interfaces |
0 |
|
Audio Encoding |
|
|
Audio Encoding Format |
G722.1, G711U, G711A, AAC-LC |
|
Video Output |
|
|
Max. Video Output Resolution |
4K |
|
Video Output Interface Type |
HDMI 1.4 |
|
Video Output Interfaces |
1 |
|
Video Output Resolution |
3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz |
|
Video Output Resolution (BNC) |
PAL: 704 × 576@25 Hz, NTSC: 704 × 480@30 Hz |
|
Video Output Interface (BNC) |
1-ch BNC |
|
Video Decoding |
|
|
Video Decoding Format |
H.264, H.265, SmartH.264, SmartH.265, MJPEG |
|
Video Decoding Resolution |
Up to 32 MP |
|
Video Decoding Channels |
16 |
|
Video Decoding Capability |
Support 1-ch 32 MP/24 MP/2-ch 12 MP/4-ch 8 MP/5- ch 6 MP/ 9-ch 4 MP/16-ch 1080p and below real-time decoding |
|
Audio Output |
|
|
Audio Output Interface Type |
embedded HDMI audio output or BNC |
|
Audio Output Interfaces |
1 |
|
Audio Decoding |
|
|
Audio Decoding Format |
G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC |
|
Encoding and Decoding |
|
|
Audio Decoding Format |
G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM |
|
Decoding |
|
|
Decoding Resolution |
Up to 32 MP |
