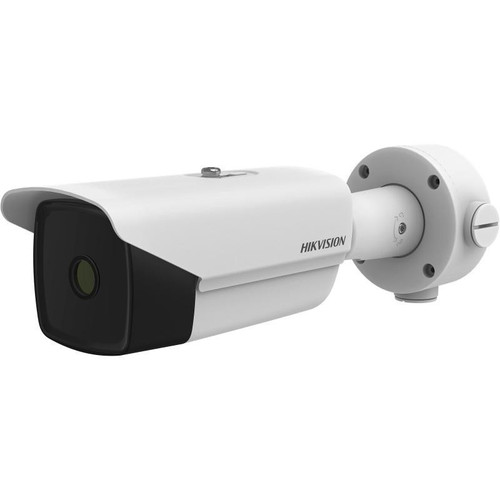

Hikvision DS-2TD2637-25/QY Thermal & Optical Bi-spectrum Network Bullet Camera
- 384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Fire detection Algorithm
- Support sun-reflection filter algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
DatasheetSpecifications
Thermal Module
- Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
- Resolution: 384 x 288
- Pixel Pitch: 17 μm
- Spectral Range: 8 μm to 14 μm
- NETD: ≤ 35 mK (@25° C,F# = 1.0)
- Focal Length: 25 mm
- IFOV: 0.68 mrad
- Aperture: F1.0
- Field of View: 14.9° × 11.2° (H × V)
- Min. Focusing Distance: 13 m
- Digital Zoom: ×2, ×4
Optical Module
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Resolution: 2688 × 1520
- Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field of View: 25.25° × 14.44° (H × V)
- Focal Length: 12mm
- Shutter Speed: 1 s to 1/100,000 s
- White Balance: MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night Mode: IR Cut Filter with Auto Switch
- WDR: 120 dB
General
- Power Supply;
24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block
PoE (802.3af, class 3)
- Power Consumption;
24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W
12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W
24VDC: 0.4A, max 9.5W
PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
- Work Temperature/Humidity;
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level:
IP67 Standard
IK10-rated housing
TVS 4000V lightning protection, surge protection, voltage transient protection
NEMA 4X anti-corrosion housing
- Dimension: 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
- Weight: 1.82 kg (4.01 lb)
Detection Range Table/Smart Function Range
- VCA Range for Humans: 175 m
- VCA Range for Vehicles: 525 m
