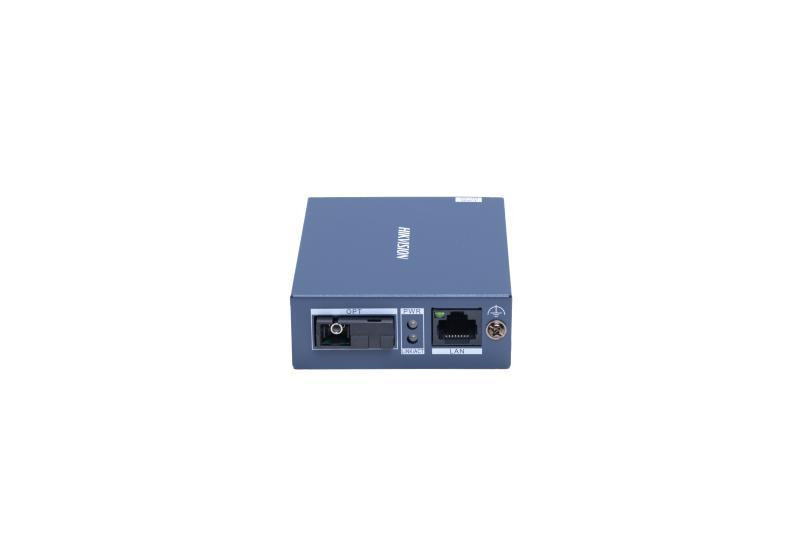

Hikvision DS-3D01T-A(B) 20KM 100Mbps Fiber Transceiver
- 1 x 100 Mbps RJ45 port and 1 x 100 Mbps SC fiber optical port
- Plug-and-play and fast forwarding, achieving high-speed, lossless, and up to 20 km transmission of data signals with no configuration required
- 4 kV lightning protection design with high reliability
- Quasi-industrial-grade design with an operating temperature range of -20 °C to 60 °C
- Wavelength division multiplexing and single-fiber data forwarding, saving cabling costs
- Solid and high-strength industrial-grade metal shell with stronger heat dissipation capability
DatasheetSpecifications
General
- Shell: Metal
- Net Weight: 0.13 kg (0.28 lb)
- Gross Weight: 0.23 kg (0.51 lb)
- Dimensions (W × H × D): 71.6 mm × 26.1 mm × 94.1 mm (2.81'' × 1.03'' × 3.70'')
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Power Supply: 5VDC, 0.6A
- Max. Power Consumption: 3 W
- Power Consumption in Idle: 2 W
- Installation Mode: Desk-Mounted
- Surge Protection: 4 kV
Network Parameters
- Ports: 1 x 100 Mbps RJ45 port and 1 x 100 Mbps SC fiber optical port
- Switching Capacity: 0.4 Gbps
- Packet Forwarding Rate: 0.3 Mpps
Optical Module Parameters
- Optical Interface: SC
- Fiber Type: Single-mode bidirectional fiber
- Transmission Distance: 20 km
- Wavelength: Tx1310 nm/Rx1550 nm
- Transmit Power: -14 ~ -7 dBm
- Receiver Sensitivity: ≤ -32 dB
