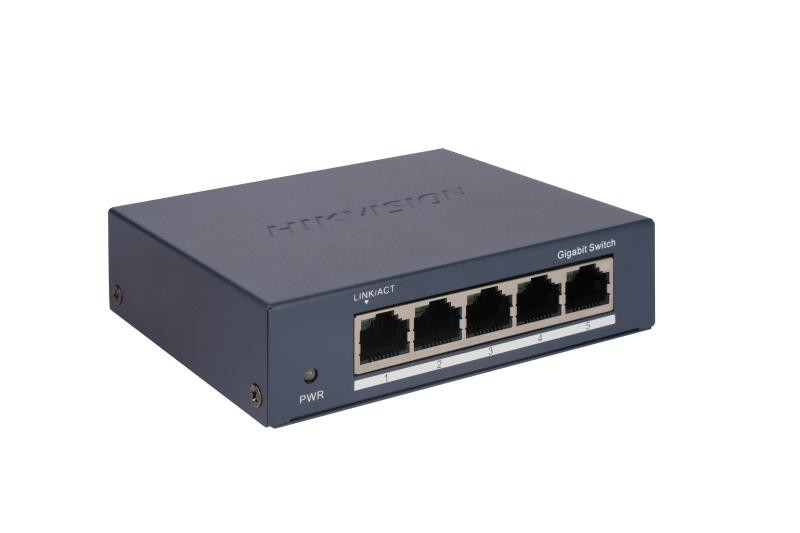

Hikvision DS-3E0505-O 5-Port Gigabit Switch
- 5 × Gigabit RJ45 ports
- 1000M network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Fan-free design with high reliability
DatasheetSpecifications
General
- Shell: Metal material, fan-free design
- Net Weight: 0.17 kg (0.37 lb)
- Dimensions (W × H × D): 105.00 mm × 27.60 mm × 83.10 mm (4.13'' × 1.09'' × 3.27'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 5VDC, 0.6A
- Max. Power Consumption: 3 W
- Power Consumption in Idle: 0.25 W
- Installation Mode: Desk-Mounted,Wall-Mounted
- Surge Protection: 6 KV
Network Parameters
- Ports: 5 × Gigabit RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- Internal Cache: 3 Mbits
