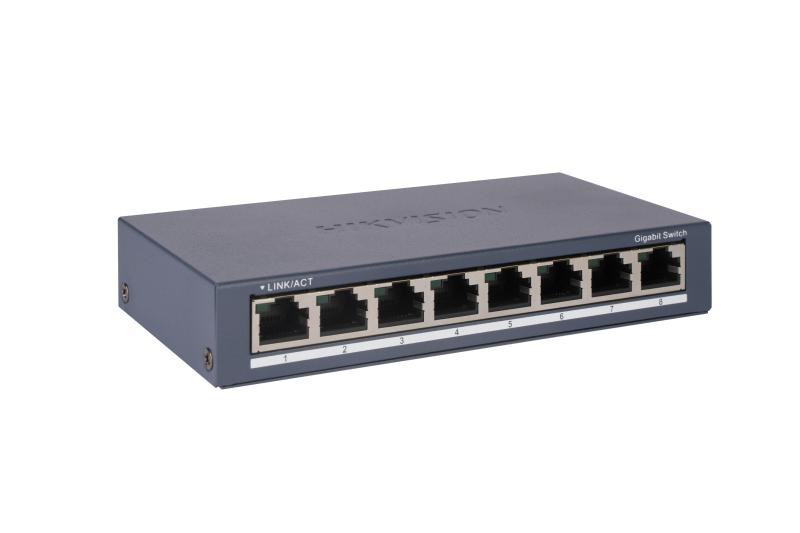

Hikvision DS-3E0508-O 8-Port Gigabit Switch
- 8 × Gigabit RJ45 port
- 1000M network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Fan-free design with high reliability
DatasheetSpecifications
General
- Shell: Metal material, fan-free design
- Net Weight: 0.24 kg (0.53 lb)
- Dimensions (W × H × D): 145.00 mm × 25.60 mm × 68.45 mm (5.71'' × 1.01'' × 2.69'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 5VDC, 0.6A
- Max. Power Consumption: 3 W
- Power Consumption in Idle: 1.61 W
- Installation Mode: Desk-Mounted,Wall-Mounted
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × Gigabit RJ45 port
- MAC Address Table: 8 K
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.90 Mpps
- Internal Cache: 4 Mbits
