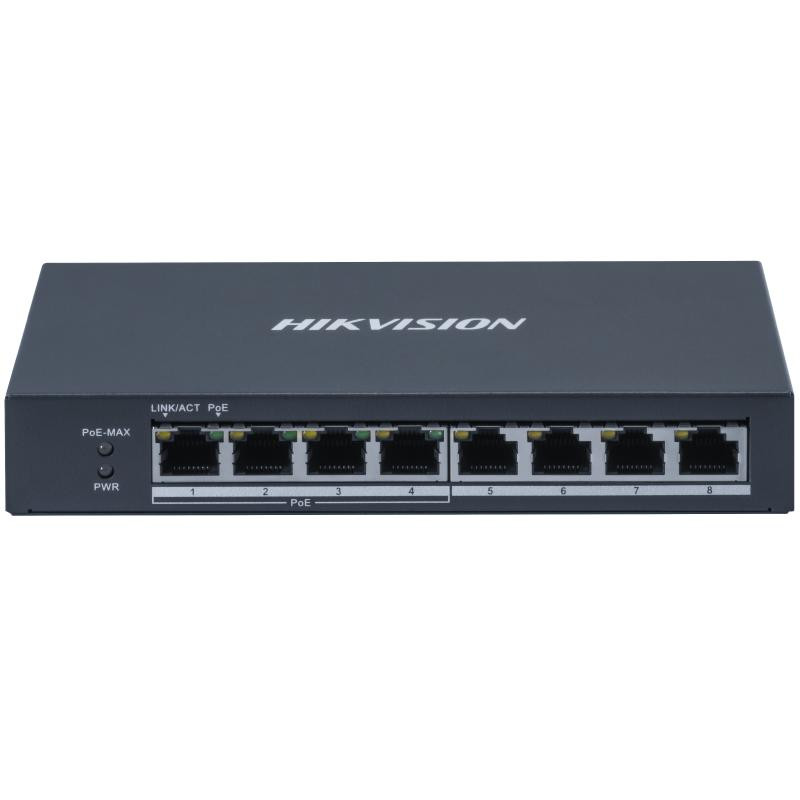

Hikvision DS-3E0508P-O 8-Port Gigabit Switch with 4 POE+
- 4 × Gigabit PoE port, 4 × Gigabit RJ45 port
- Gigabit PoE and non-PoE ports for multiple use
- Plug-and-play with easy connection
- Built to last with a rugged metal case
- Desktop/Wall-mounted installation available for any work environment
DatasheetSpecifications
General
- Shell: Metal material, fan-free design
- Net Weight: 0.365 kg (0.805 lb)
- Dimensions (W × H × D): 170.0 mm × 27.6 mm × 93.1 mm (6.69'' × 1.08'' × 3.66'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 1.35 A
- Installation Mode: Rack (equipped with mounting ears)
- Surge Protection: 6 KV
Network Parameters
- Ports: 4 × Gigabit PoE port,4 × Gigabit RJ45 port
- MAC Address Table: 4 K
- Switching Capacity: 16 Gbps
- Packet Forwarding Rate: 11.90 Mpps
- Internal Cache: 1.5 Mbits
