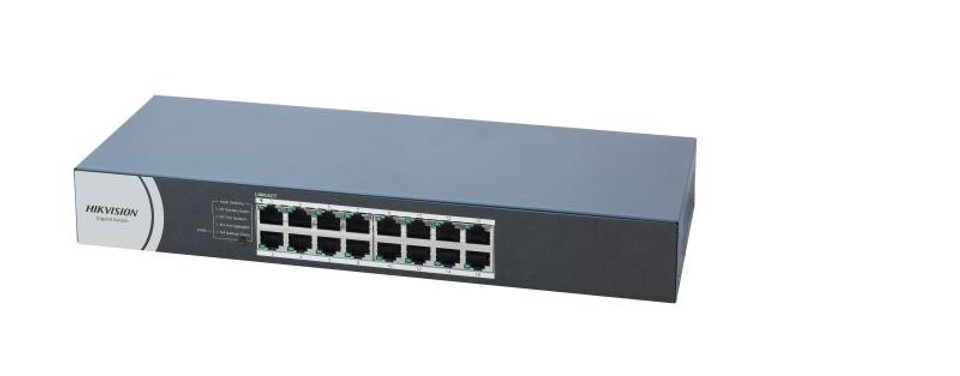

Hikvision DS-3E0516R-O 16-Port Gigabit Switch
- 16 × 10/100/1000 Mbps RJ45 Port
- Easy Plug-and-Play Installation
- Rack-Mounting
- Rugged Metal Case, Exquisite and Beautiful Design
DatasheetSpecifications
General
- Shell: Metal material, fan-free design
- Net Weight: 0.9 kg (2.0 lb)
- Dimensions (W × H × D): 327.00 mm × 44.00 mm × 118.00 mm (12.87'' × 1.73'' × 4.65'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100-240 VAC, 50/60 Hz, Max. 0.3 A
- Max. Power Consumption: 12 W
- Power Consumption in Idle: 2.8 W
- Installation Mode: Rack (equipped with mounting ears)
- Surge Protection: 6 KV
Network Parameters
- Ports: 16 × Gigabit RJ45 port
- MAC Address Table: 8 K
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.81 Mpps
- Internal Cache: 4.1 Mbits
