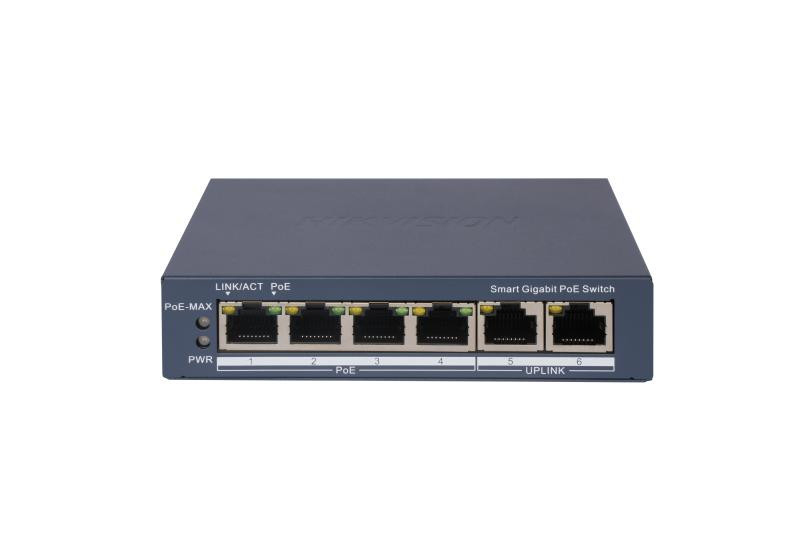

Hikvision DS-3E1506P-EI 4 Port Gigabit Smart POE Switch
- 4 × Gigabit PoE port,2 × Gigabit RJ45 port
- Total PoE Power Budget 60W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6KV Surge Protection
DatasheetSpecifications
General
- Shell: Metal material
- Net Weight: 0.27 kg (0.6 lb)
- Gross Weight: 0.77 kg (1.7 lb)
- Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 54VDC, 1.2A
- Installation Mode: Desk-Mounted,Wall-Mounted
- Max. Power Consumption: 65 W
- Power Consumption in Idle: 1.6 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 4 × Gigabit PoE port,2 × Gigabit RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 14 Gbps
- Packet Forwarding Rate: 10.42 Mpps
- Internal Cache: 1 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Port: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 60 W
