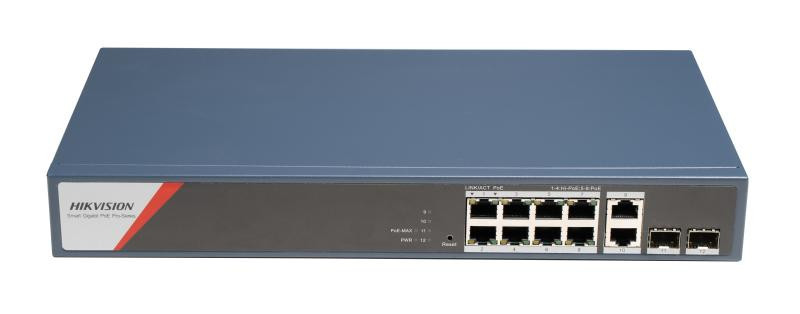

Hikvision DS-3E1512HP-SI-8P2T2F 8 Port Gigabit Smart POE Switch
- 8 x 10/100/1000 Mbps PoE Ports, 2 × 10/100/1000 Mbps RJ45, 2 x 10/100/1000 Mbps SFP
- Total PoE Power Budget 130 W
- Support 802.1Q VLAN
- Support 802.3bt Hi-PoE, Max. 90W for one port
- Support STP/RSTP Loop prevention, storm control
- Support cable detection to locate failure
- Support SNMP, QoS, DHCP snooping
- 6 kV Surge Protection
DatasheetSpecifications
General
- Shell: Metal material
- Net Weight: 2.7 kg (5.9 lb)
- Gross Weight: 2.9 kg (6.4 lb)
- Dimensions (W × H × D): 335 mm × 44.5 mm × 175.8 mm (13.19'' × 1.75'' × 6.92'')
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100-240V~ 50/60Hz 2.5A
- Installation Mode: Desk-Mounted,Rack (equipped with mounting ears)
- Max. Power Consumption: 150 W
- Power Consumption in Idle: 20 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity;
Whole-Device Performance: 24 Gbps
Port Performance: 24 Gbps
- Packet Forwarding Rate;
Whole-Device Performance: 17.86 Mpps
Port Performance: 17.86 Mpps
- Internal Cache: 4.1 Mbits
PoE Power Supply
- PoE Standard;
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 8: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin;
Ports 1 to 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Ports 5 to 8: End-span: 1/2(-), 3/6(+)
- PoE Port: PoE;
Ports 1 to 4: 90 W
Ports 5 to 8: 30 W
- Max. Port Power;
Hi-PoE: Ports 1 to 4
PoE: Ports 5 to 8
- PoE Power Budget: 130 W
