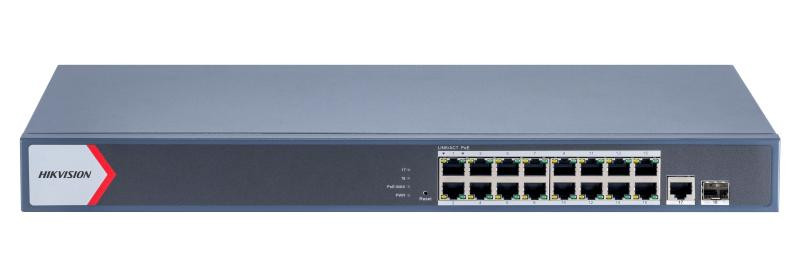

Hikvision DS-3E1518P-EI 16 Port Gigabit Smart POE Switch
- 16 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
- Total PoE power budget 230 W
- Unified cloud management for security systems
- Network topology at your fingertips
- Remote troubleshooting
- Visualized topology management
- Up to 300 m long-range PoE transmission
- 6 kV surge protection
DatasheetSpecifications
General
- Shell: Metal material
- Net Weight: 2.85 kg (6.28 lb)
- Gross Weight: 3.05 kg (6.72 lb)
- Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
- Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100~240 V AC, 50/60 Hz, Max. 4 A
- Installation Mode: Rack (equipped with mounting ears)
- Max. Power Consumption: 250 W
- Power Consumption in Idle: 20 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 56 Gbps
- Packet Forwarding Rate: 41.66 Mpps
- Internal Cache: 4.1 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port: PoE: Ports 1 to 16
- Max. Port Power: 30 W
- PoE Power Budget: 230 W
