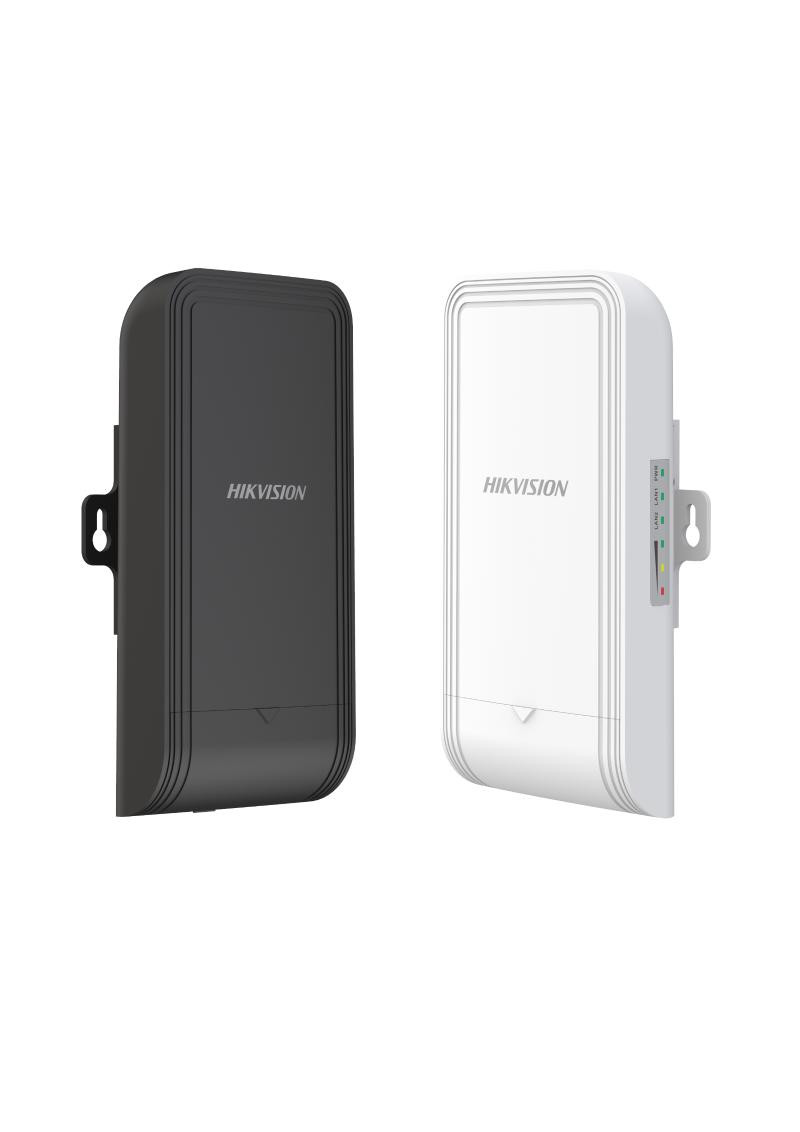

Hikvision DS-3WF0EC-2NT 2.4Ghz 300Mbps 500m Elevator Wireless Bridge
- Up to 500 m wireless transmission distance
- 300 Mbps 802.11n wireless bridge
- Built-in 7dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-Time alarm push technology
DatasheetSpecifications
General
- Installation Mode: Pole Mounting
- Ingress Protection: IP55
- Power Consumption: 1.89 W for typical (1-ch 2MP IPC), Max. 3.7 W
Wireless Parameter
- Max. Transmission Rate of Air Interface: ≤ 300 Mbps
- Wireless Standard: IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
- Antenna Gain: 7 dBi
- Antenna Angle: (H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
Hardware Parameter
- Network Interface: 2 × 10/100 Mbps RJ45 ports
- LED Indicator: Power indicator, LAN indicator, Signal intensity indicator
- Reset: Hardware resetting button
- Power Supply: 12-24 VDC Passive PoE
Software Function
- Application Function: IFM,IPM
- Security Mode: WPA2-PSK
- Network Protocol: NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
