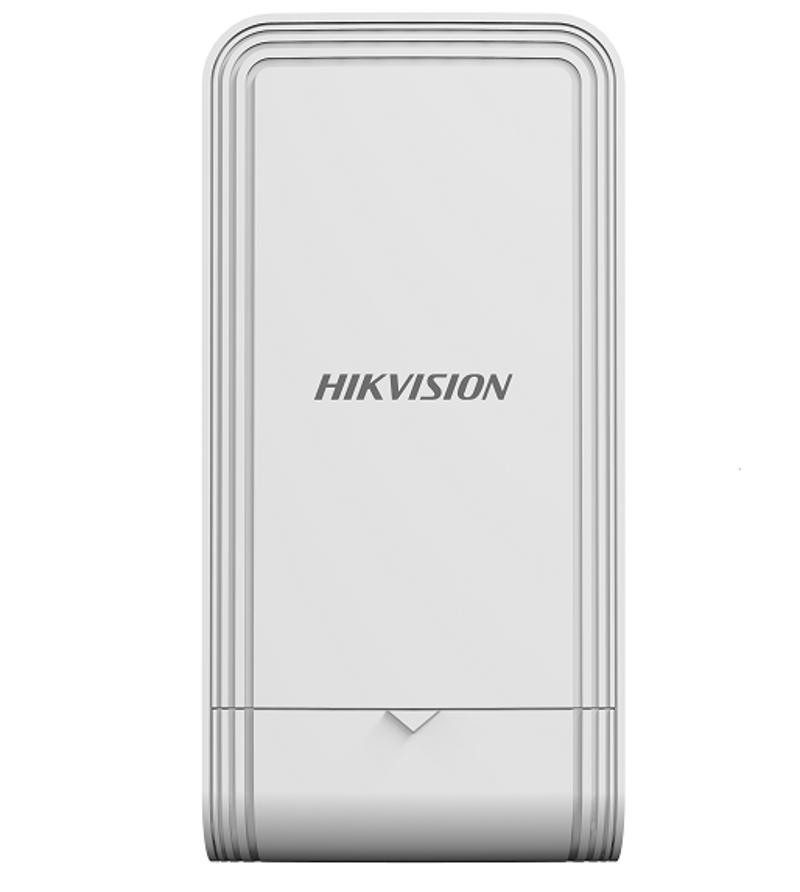

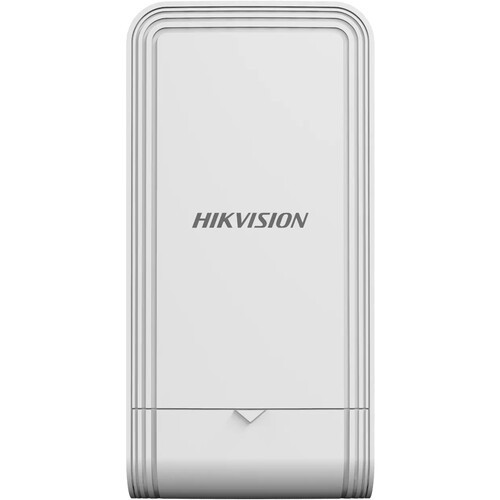

Hikvision DS-3WF3000S-EI-5AC/P 5Ghz 867Mbps 3KM Wireless Bridge
- Up to 3 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 8 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Output
DatasheetSpecifications
General
- Installation Mode: Pole Mounting
- Ingress Protection: IP55
- Power Consumption: 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
Wireless Parameter
- Max. Transmission Rate of Air Interface: ≤ 867 Mbps
- Wireless Standard: IEEE 802.11/a/n/ac
- Antenna Gain: 8 dBi
- Antenna Angle: (H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50°
PoE Power Supply
- PoE Port: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
- PoE Power Budget: 10 W
- PoE Distance: 100 m
Hardware Parameter
- Network Interface: 2 × 10/100 Mbps RJ45 ports
- LED Indicator: Power indicator, LAN indicator, Signal intensity indicator
- Reset: Hardware resetting button
- Power Supply: 48V PoE/12~24V DC; Check the physical interface image below for more details.
Software Function
- Application Function: IFM,IPM,DFS,TPC
- Security Mode: WPA2-PSK
- Network Protocol: NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
