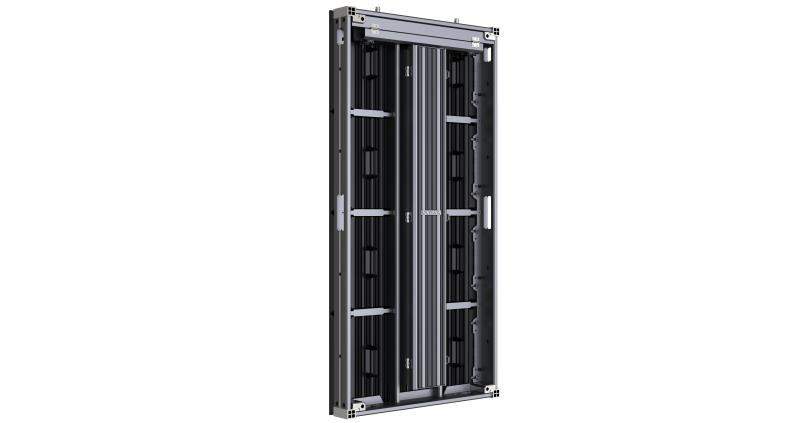

Hikvision DS-D4239CF-1AAB P3.9 Outdoor LED Display Unit
- The luminaire is designed with an aluminum cabinet structure, which is lightweight, flat, and has high flatness. It supports IP66 protection level and can be maintained from the front or rear.
- The luminaire is equipped with an aluminum profile and an aluminum cabinet, which has a high heat dissipation efficiency.
- It supports wall-mounted and ground-mounted installation methods.
- Support wall type, floor type and other installation methods
- The luminaire uses aviation plug design, which makes installation and construction simple and efficient.
- The solder joints use lead-free and non-toxic solder paste materials, which do not harm the human body or the environment.
DatasheetSpecifications
Cabinet
Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P3.9
Pixel Pitch: 3.91mm
Modules Component: 1 × 4
Dimensions (W × H × D): 500 mm × 1000 mm × 97 mm（19.69" × 39.37" × 3.82"）
Resolution: 128 × 256
Area: 0.5 m²
Weight: 18.24 kg
Pixel Density: 65536 dots/m²
Lamp Board Housing: With housing
Cabinet Material: Aluminum Profile
Maintenance Method: Front and Rear maintenance
Cabinet Flatness: 0.8 mm
Protection Level: IP66
Display
White Balance Brightness;
4500 nit (Factory preset brightness)
5000 nit (Peak)
Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, vertical 130°
Contrast Ratio: ≥ 5000:1
Color Uniformity: ≤ ± 0.004Cx，Cy
Brightness Uniformity: ≥ 95％
Processing Performance
Driving Method: Constant current driving
Frame Frequency: 50/60 Hz
Refresh Rate: Up to 3840 Hz
Grey Level: 14 bit adjustable
Power
Power Supply: 110~220 VAC ± 15%
Max. Consumption: ≤ 508 W/㎡ （5000nits）
Average Consumption: ≤ 170 W/㎡ （5000nits）
Working Environment;
Working Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Working Humidity: 10%~95%RH (No condensation)
Storage Humidity: 10%~90%RH (No condensation)
Storage Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
General
Lifespan: Lamp 100,000 hours
Gross Weight: 20.6 Kg/1 in 1
Packing List: Three-in-one document (Certificate of Conformity / Warranty Card / Material Safety Data Sheet), accessory list × 1
