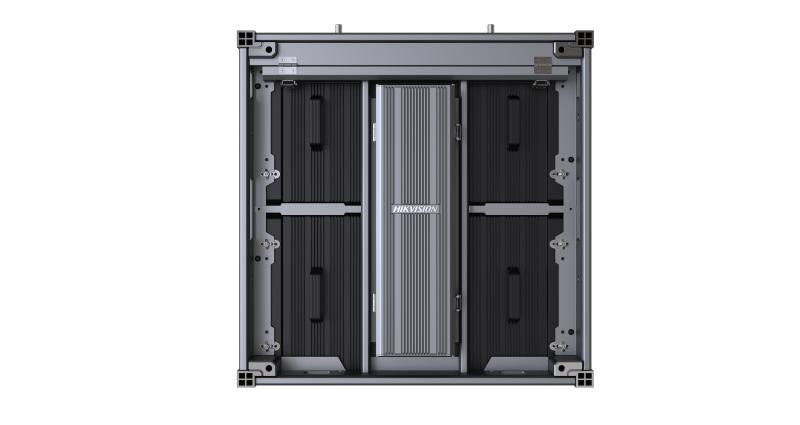

Hikvision DS-D4248CD-1AAB P4.8 Outdoor LED Display Unit

• Aluminum box structure design, box light, high flatness, support IP66 protection level, support front and back maintenance two maintenance methods
• Aluminum profile + aluminum shell, all metal aluminum box configuration, high heat dissipation efficiency
• Support automatic dehumidification, effective protection of long time or humid environment lamp bead
• Support wall type, floor type and other installation methods
• Adopt aviation plug design, installation and construction is simple and efficient
• Solder joint using lead-free non-toxic solder paste material, will not cause harm to human body and environment

Datasheet

Specifications

Cabinet

Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P4.8
Pixel Pitch: 4.81mm
Modules Component: 1 × 2
Dimensions (W × H × D): 500 mm × 500 mm × 97 mm
Resolution: 104×104
Area: 0.25 m²
Weight: 9.12 Kg
Pixel Density: 43264 dots/m²

Lamp Board Housing: With housing

Cabinet Material: Aluminum Profile

Maintenance Method: Front and Rear maintenance

Cabinet Flatness: 0.8 mm

Protection Level: IP66

Display

White Balance Brightness;

4500 nit (Factory preset brightness)

5000 nit (Peak)

Color Temperature: 9300K adjustable
Viewing Angle: Horizontal 160°, vertical 130°
Contrast Ratio: ≥ 5000:1
Color Uniformity: ≤ ± 0.003Cx, Cy
Brightness Uniformity: ≥ 95％

Processing Performance

Driving Method: Constant current driving
Frame Frequency: 60 Hz
Refresh Rate: Up to 3840 Hz
Grey Level: Up to 14 bit

Power

Power Supply: 110~220 VAC ± 15%
Max. Consumption: ≤ 650W/㎡ （4500nits）
Average Consumption: ≤ 210 W/㎡ （4500nits）

Working Environment;

Working Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Working Humidity: 10%~80%RH
Storage Humidity: 10%~80%RH
Storage Temperature: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)

General

Lifespan: Lamp 100,000 hours

Gross Weight: 10.85KG/1 in 1
