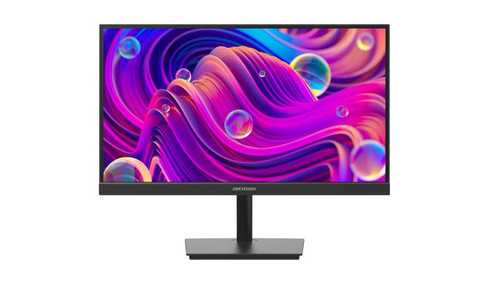

Hikvision DS-D5022F2-1V2S 21.5 inch FHD 100Hz VA Monitor with Speaker
- 100 Hz refresh rate, more fluid and life-like video
- Ultra-thin device body with ultra-thin border for 3 sides.
- 8 bit LVDS FHD (1920 × 1080) display.
- Low blue light design for eye care.
- Multiple interfaces, including VGA, HDMI, audio out, and built-in speaker.
- Support VESA wall mount.
DatasheetSpecifications
Display
- Screen Size: 21.45 inch
- Active Display Area: 478.656 (H) mm × 260.280 (V) mm
- Resolution: 1920 × 1080
- Backlight: E-LED
- Pixel Pitch: 0.241 mm (H) × 0.241 mm (V)
- Brightness: 250 cd/m²
- Viewing Angle: 178° (H) / 178° (V)
- Color Depth: 8 bit ,16.7 M
- Contrast Ratio: 4000 : 1
- Response Time: 8 ms
- Refresh Rate: Max. 100Hz , Typ. 60 Hz
- Haze: Haze 25%, 3H
- Reliability: 7 × 16 H
- Color Gamut: 72% NTSC
Interface
- Video & Audio Input: HDMI 1.4 × 1, VGA × 1，Audio In × 1
- Video & Audio Output: Speaker × 2 ( 4Ω 2W)
- Data Transmission Interface: None
- Control Interface: None
Power
- Power Supply: DC 12V, 2.0A
- Power Consumption: ≤ 24 W
- Standby Consumption: ≤ 0.5 W
Working Environment
- Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 20% to 90% RH (Non-Condensing)
- Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity: 10% to 90% RH (Non-Condensing)
General
- Casing Material: Plastic
- VESA: 75 mm × 75 mm (4 - M4 × 6 mm)
- Bezel Width: 2.38 mm (top/left/right), 21.55 mm (bottom)
- Product Dimensions (W × H × D);
With base: 493.26 (W) mm × 393.45 (H) mm × 185.74 (D) mm
Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm
- Package Dimensions (W × H × D): 599 (W) mm × 393 (H) mm × 109 (D) mm
- Net Weight: 2.0 ± 0.5 kg
- Gross Weight: 3.2 ± 0.5 kg
- Packing List: Monitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
