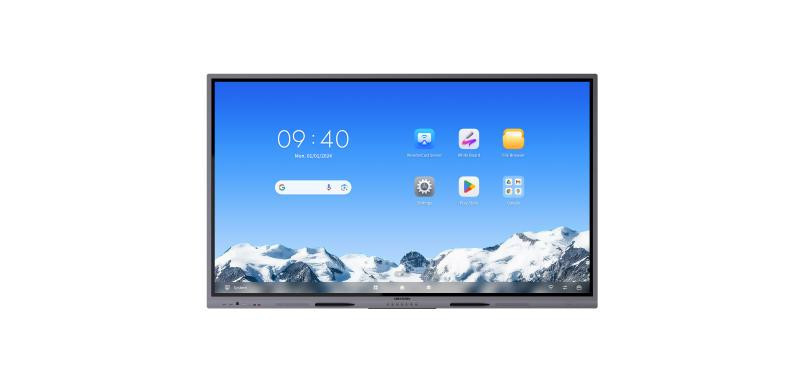

Hikvision DS-D5C75RB/A2L 75-inch 4K Interactive Display
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-point touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- Multi-button design in front, convenient for classroom use.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed.
- Built-in Android 14 system, EDLA Certified
DatasheetSpecifications
Product Model
- Product Model: DS-D5C75RB/A2L
Display
- Screen Size: 75 inch
- Backlight: DLED
- Pixel Pitch: 0.143 (H) × 0.429 (V) mm
- Resolution: 3840 × 2160 @60 Hz
- Brightness: 480 cd/m² (Typ.)
- Color Depth: 10 bit
- Display Color: 1.07G
- Response Time: 5 ms
- Panel Type: VA
- Contrast Ratio;
5000:1 (Static)
30,000:1 (Dynamic)
- Color Gamut: 72% NTSC (CIE1931) (Typ.)
- Refresh Rate: 60 Hz
- Viewing Angle: 178°(H)/178°(V)
- Aspect Ratio: 16:9
- Surface Haze: 25% Haze
- Display Area: 1650.24 (H) × 928.26 (V)
- Working Duration: 7 × 16H
- Surface Hardness;
9H (Pencil)
7 (Mohs)
- Surface Glass: 3.2 mm Anti-Glare Glass
- Glass Bonding Method: Zero Lamination
- Display Area: 1428.48 (H) × 803.52 (V)
- Working Duration: 7 × 16 H
- Transmittance: 88% ± 3
- Lifespan: 50,000 hours
Touch
- Type: Infrared Touch Screen
- Touch Point: Up to 50-point multi-touch
- Touch Response Time: ≤ 2 ms
- Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision: ± 0.5 mm (≥ 90% touching area)
- Touch Resolution: 32768 × 32768
Built-in System
- Operation System: Android 14.0
- Memory: 8 GB
- Built-in Storage: 128 GB
- Processor: Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- GPU: Mali-G610 MC4
- HDCP Version: 2.3 & 2.0 & 1.4
Internal Function
- Loudspeaker: Built-in 2 × 20 W + 25 W loudspeaker;
- Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
- NFC:
Support card reader
13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)
- Light Sensor: Yes
- Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction.
- Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- Humidity and Temperature Sensor: Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C
Interface
- Video & Audio Input;
HDMI 2.0 × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.0 & 1.4; Support HDMI CEC protocol）
VGA × 1（Rear）
Audio × 1（Rear）
- Video & audio output;
HDMI 2.0 × 1（Rear）
Audio × 1（Rear）
SPDIF × 1（Rear）
- Control interface;
TOUCH-USB 3.0 × 1（Front × 1）
TOUCH-USB 2.0 × 2（Rear × 2）
RS232 × 1（Rear）
- Network Interface:
LAN (1000 Mbps) × 2（Rear）
Wi-Fi AP & Station, 2.4 G/5 G
Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface:
USB 3.0 × 4（Front × 2; Rear × 2）
USB 2.0 × 1（Rear）
Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )
Power
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Standby Consumption: ≤ 0.5 W
- Average Consumption: < 237 W
Working Environment
- Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 10%~90% RH
General
- Package Dimensions (W × H × D): 1907 × 1160 × 223 mm
- VESA: 800 mm × 400 mm (4 × M8-25 mm)
- Net Weight: 45.4 ± 0.5 kg
- Gross Weight: 63.1 ± 0.5 kg
- Accessary: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
