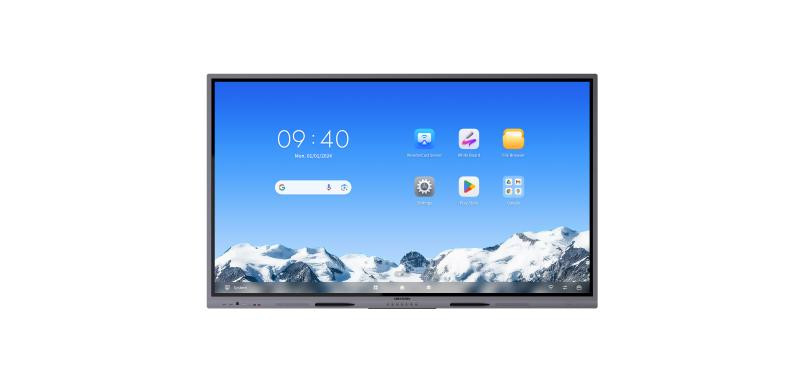

Hikvision DS-D5C86RB/A2L 86-inch 4K Interactive Display

• UHD 4K display with resolution of 3840 × 2160.
• Anti-glare and anti-blocking design to ensure smooth interaction.
• Dual systems of Android and Windows (optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
• Quick response, at most 50-point touch control and smooth writing experience.
• Built-in network switch chip saves a network switch.
• Multi-button design in front, convenient for classroom use.
• All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed.
• Built-in Android 14 system, EDLA Certified

Datasheet

Specifications

Product Model

• Product Model: DS-D5C86RB/A2L

Display

• Screen Size: 86 inch
• Backlight: DLED
• Pixel Pitch: 0.164 (H) × 0.493 (V) mm
• Resolution: 3840 × 2160 @60 Hz
• Brightness: 480 cd/m² (Typ.)

• Color Depth: 10 bit
• Display Color: 1.07G
• Response Time: 5 ms
• Panel Type: VA
• Contrast Ratio;

5000:1 (Static)

30,000:1 (Dynamic)

• Color Gamut: 72% NTSC (CIE1931) (Typ.)
• Refresh Rate: 60 Hz
• Viewing Angle: 178°(H)/178°(V)
• Aspect Ratio: 16:9
• Surface Haze: 25% Haze
• Display Area: 1895.04 (H) × 1065.96 (V)
• Working Duration: 7 × 16H
• Surface Hardness;

9H (Pencil)

7 (Mohs)

• Surface Glass: 3.2 mm Anti-Glare Glass
• Glass Bonding Method: Zero Lamination
• Display Area: 1428.48 (H) × 803.52 (V)
• Working Duration: 7 × 16 H
• Transmittance: 88% ± 3
• Lifespan: 50,000 hours

Touch

• Type: Infrared Touch Screen
• Touch Point: Up to 50-point multi-touch
• Touch Response Time: ≤ 2 ms
• Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
• Touch Precision: ± 0.5 mm (≥ 90% touching area)
• Touch Resolution: 32768 × 32768

Built-in System

• Operation System: Android 14.0
• Memory: 8 GB
• Built-in Storage: 128 GB
• Processor: Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
• GPU: Mali-G610 MC4
• HDCP Version: 2.3 & 2.0 & 1.4

Internal Function

• Loudspeaker: Built-in 2 × 20 W + 25 W loudspeaker;
• Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.4
• NFC:

  Support card reader

  13.56 MHz, (ISO 14443A/ ISO 14443B/ ISO 15693)

• Light Sensor: Yes
• Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction.
• Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
• Humidity and Temperature Sensor: Relative humidity accuracy: up to ± 1.5 %RH; Temperature accuracy: up to ± 0.1 °C

Interface

• Video & Audio Input;

  HDMI 2.0 × 3（Front x 1; Rear x 2; Support HDCP2.3 & 2.0 & 1.4; Support HDMI CEC protocol）

  VGA × 1（Rear）

  Audio × 1（Rear）

• Video & audio output;

  HDMI 2.0 × 1（Rear）

  Audio × 1（Rear）

  SPDIF × 1（Rear）

• Control interface;

  TOUCH-USB 3.0 × 1（Front × 1）

  TOUCH-USB 2.0 × 2（Rear × 2）

  RS232 × 1（Rear）

• Network Interface:

  LAN (1000 Mbps) × 2（Rear）

  Wi-Fi AP & Station, 2.4 G/5 G

  Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

• Data Transmission Interface:

  USB 3.0 × 4（Front × 2; Rear × 2）

  USB 2.0 × 1（Rear）

  Type-C × 2 (Front × 1; Rear × 1; Support USB 2.0, 100 W charging functions, DP IN 1.2 )

Power

• Power Supply: 100 to 240 VAC, 50/60 Hz
• Standby Consumption: ≤ 0.5 W
• Average Consumption: < 274 W

Working Environment

• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 10%~90% RH

General

• Package Dimensions (W × H × D): 2157 × 1345 × 223 mm
• VESA: 800 mm × 600 mm (4 × M8-25 mm)
• Net Weight: 58.5 ± 0.5 kg
• Gross Weight: 78.5 ± 0.5 kg
• Accessary: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable, remote control, screen cleaning cloth.
