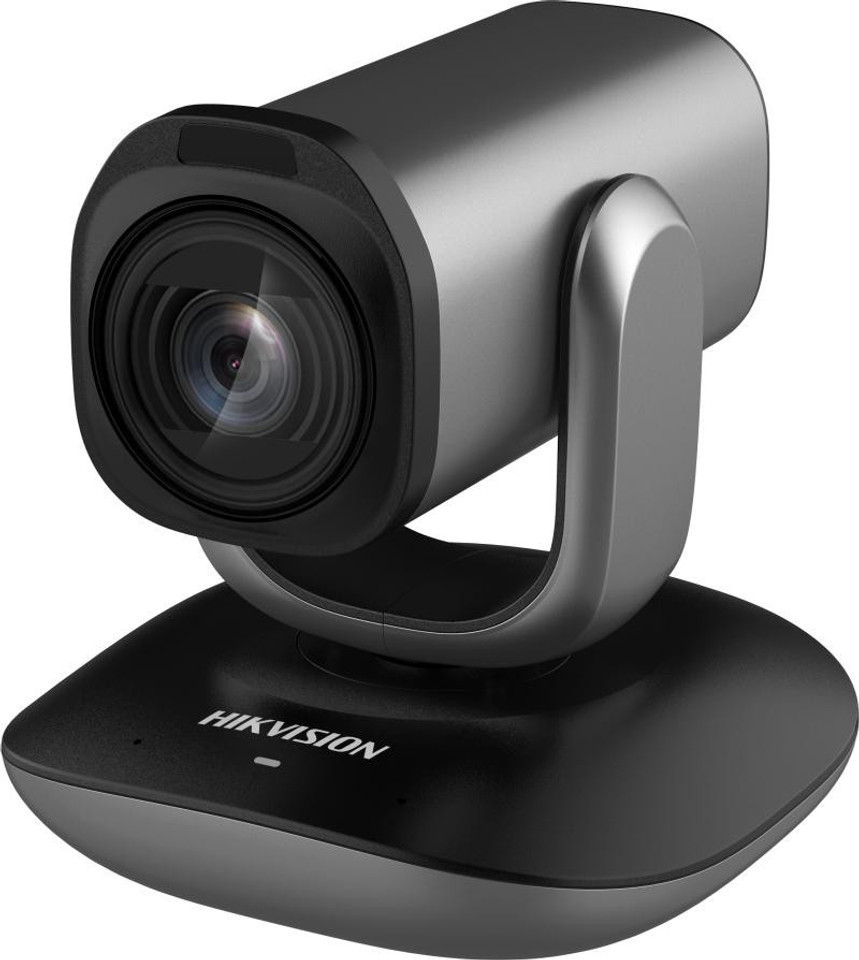

Hikvision DS-UVC-P22 2 MP Video Conference Camera

• 2 MP (WDR) CMOS
• High quality imaging with 1920 × 1080 resolution
• Adopt a zoom low-distortion lens with equivalent focal lengths ranging from 23.1 mm to 277.2 mm, auto focus, 12× optical zoom, and 4 × digital zoom
• Support smart functions, including human body following and face focus
• Dual-microphone built into the camera with clear sound
• Support adjusting related parameters via remote control. Support setting up to 5 custom scene presets
• USB Type-C interface, supporting USB 2.0 protocol, plug-and-play, no need to install driver software
• Compatible with multiple mainstream communication software

Datasheet

Specifications

Camera

• Image Sensor: 1/2.8" 2 MP CMOS
• Max. Resolution: 1920 × 1080
• USB Output;

MJPG:

1920 × 1080, 1280 × 960, 1280 × 720 @60/50/30/25 fps

H.264:

1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @60/50/30/25 fps

YUY2/NV12:

1920 × 1080 @5 fps

1280 × 960 @10 fps

1280 × 720 @15 fps

640 × 480, 640 × 360 @30/25 fps

• Shutter Time: PAL: 1/25 s to 1/10,000 s,NTSC: 1/30 s to 1/10,000 s
• Object Distance Range: Wide: 0.1 m to ∞, Tele: 1.5 m to ∞
• Optical Zoom: ×12
• Digital Zoom: ×4 (YUV Format: ×1.5)
• Angle Adjustment: Pan: -165° to 165°,Tilt: -30° to 30°

Lens

• Focal Length & FOV;

Varifocal lens: 3.4 mm to 40.8 mm, equivalent focal length: 23.1 mm to 277.2 mm

Horizontal FOV: 80.5° to 7.6°, vertical FOV: 50.5° to 4.4°, diagonal FOV: 88.9° to 8.7°

• Focus: Auto/Semi-auto mode, supporting selection of focus area

Microphone

• Type: MEMS
• Polar Pattern: 360° omni-directional
• Pickup Distance: In a radius of up to 5 m
• Amount: Dual-microphone
• Frequency Response: 100 Hz to 8 kHz
• Sensitivity: -32 ± 3 dBV/Pa
• SNR: 70 dB(A)
• Sampling Rate: 16 kHz/32 kHz/48 kHz

Functions

• Image Function: Support adjustment of related parameters such as exposure, white balance and image settings (including image DNR, contrast, sharpness, saturation, hue, Gamma, etc.)
• Audio Function: Support steady and transient smart noise reduction, automatic gain control, echo suppression, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high quality
• Smart Function: Support human body following and face focus
• LED Indicator;

Device startup: solid white -> flashing white -> solid white

Device working: solid white

Device mute: solid red

Device shutdown: light off

Communication

• Communication Method: Camera and remote control: 2.4G wireless
• Wireless Communication Distance: Camera and remote control: 10 m


• Wide Dynamic Range (WDR): ≥120 dB

Interface

• USB: 1 USB Type-C interface (for transmitting audio and video), supporting USB 2.0 protocol
• Audio;

1 audio input (line in), 3.5 mm three-segment TRS interface

1 audio output (line out), 3.5 mm three-segment TRS interface

• Power Interface: 12 VDC, Ø2.1 mm

Compatibility

• System Requirement;

Operating System:

Windows 7/8/10/11

Android 8.1 and above version

Linux 4.14 and above version

macOS 10.12 and above version

General

• Power: 12 VDC ± 25%, max. 15.9 W
• Operating Condition: -10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing)
• Dimension: 148.9 mm × 145.7 mm × 152.1 mm (5.86" × 5.74" × 5.99" )
• Package Dimension: 308 mm × 216 mm × 187 mm (12.13" × 8.5" × 7.36" )
• Weight: Approx. 1185 g (2.61 lb.)
• With Package Weight: Approx. 2705 g (5.96 lb.)
• Packing List;

Camera (including lens cover) × 1

Remote Control × 1

Power Adapter (1.2 m, with American, British, and European plug adapter) × 1

Power Adapter Extension Cable (3 m) × 1

USB 2.0 Cable (4.5 m) × 1

Bracket × 1

Screws × 1

Battery × 2

Regulatory Compliance and Safety Information × 1
