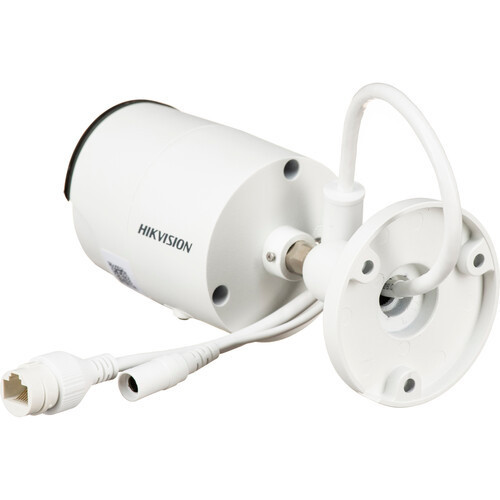

Hikvision ECI-B14F2 4MP Outdoor Network Bullet Camera with Night Vision & 2.8mm Lens
Monitor an outdoor area with the ECI-B14F2 4MP Outdoor Network Bullet Camera from Hikvision. This unit uses a 1/3" progressive scan CMOS sensor to capture 2560 x 1440 resolution video at 20 fps. EXIR 2.0 technology provides up to 100' of night vision. The camera's 2.8mm fixed lens delivers a 100° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure suitable for safe outdoor use.
- EXIR 2.0 technology for visibility in low-light conditions
- IR cut filter for day and night functionality
- 265+, H.265, H.264+, H.264, and MJPEG video codecs
- 3-axis angle adjustments
- Slow shutter support
- 120 dB wide dynamic range
- Backlight compensation
- 3D-DNR
- Image settings include rotate mode, saturation, brightness, contrast, sharpness, automatic gain control, and white balance
- Region of interest supports one fixed region for main stream and sub stream
- Alarm triggers include motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, and HDD error
- General functions include anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, and IP address filter
- Up to 6 channels in simultaneous live view
- Up to 32 users with 3 host levels (admin, operator, and user)
- 100M RJ45 Ethernet port
- Compatible with Internet Explorer 7 or higher, Firefox 5.0 or higher, Chrome 18 to 42, Safari 5.02 or higher, iOS, Android, iVMS-4200, and Hik-Connect
- NAS support
- FCC, CE, and cUL certified
| Image Sensor |
1/3"-Type CMOS
|
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 100°
Vertical: 55°
Diagonal: 117°
|
| Pan/Tilt |
No
|
| Built-In Microphone |
No
|
| Power I/O |
1x DC
1x RJ45
|
Imaging
| Lens Mount |
M12
|
| Number of Lenses |
1
|
| Image Sensor |
1/3"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
Exposure Control
| Minimum Illumination |
0.15 Lux (Color)
0 Lux (Black and White)
|
Lens
| Focal Length |
2.8mm
|
| Field of View |
Horizontal: 100°
Vertical: 55°
Diagonal: 117°
|
| Maximum Aperture |
f/2
|
Video
| Automatic Gain Control |
Yes
|
| Max IP Streaming |
via RJ45
2560 x 1440 up to 20 fps
2304 x 1296 up to 30.00 fps
|
| Multi-View Streaming |
Yes
|
Networking
| Security |
HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
|
| Supported Protocols |
Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF Profile S, ONVIF Profile G, ISAPI
|
Interface
| Media/Memory Card Slot |
No
|
| Other I/O |
1x RJ45
|
| Built-In Microphone |
No
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Motion Detection, Camera Sabotage/Tampering
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
Power
| Power I/O |
1x DC
1x RJ45
|
| Power Consumption |
PoE: 7 W
Power Supply: 5.5 W
|
General
| Material of Construction |
Metal
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
| Operating Conditions |
-22 to 140°F / -30 to 60°C up to 95% Humidity
|
| Illumination |
850 nm IR LEDs up to 100' / 30.5 m
|
| OS Compatibility |
Android/iOS
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Dimensions (W x H x D) |
2.8 x 7.5" / 70 x 191.3 mm
|
| Weight |
0.6 lb / 280 g (Body Only)
|
Packaging Info
| Package Weight |
1.15 lb
|
| Box Dimensions (LxWxH) |
9.25 x 4.75 x 4.6"
|
