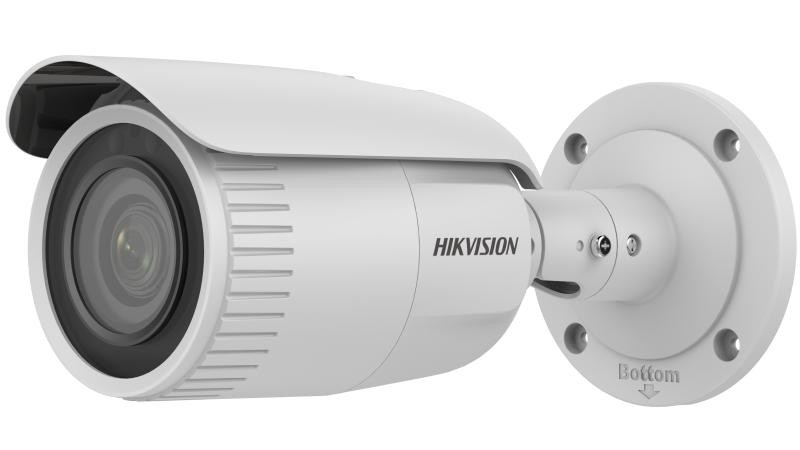

Watch over your property with the ECI-B64Z2 4MP Outdoor Network Bullet Camera from Hikvision. Equipped with a 4MP CMOS sensor and a 2.8-12mm motorized varifocal lens, the ECI-B64Z2 captures video at resolutions up to 2560 x 1440 at 20 fps in a 98 to 28° field of view. The camera has an IR cut filter and EXIR 2.0 IR LEDs for night vision with an effective range of up to 100'. Image enhancement features including a 120 dB wide dynamic range, white balance, and backlight compensation enable you to capture clear images in varying lighting conditions.
Designed for easy setup, the ECI-B64Z2 uses PoE technology, enabling you to run just one wire for both data and power. Moreover, it has a microSD card slot for edge storage and is IP67 rated for weather resistance. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
- Color images down to 0.018 lux at f/1.6 with AGC on
- EXIR 2.0 IR technology for night vision up to 100'
- IR cut filter for day and night vision
- 265+, H.265, H.264+, H.264, and MJPEG video compression for efficient storage and bandwidth use
- microSD card slot for edge storage supports up to 128GB (microSD card available separately)
- Camera pivots from 0 to 360° horizontally and from 0 to 90° vertically
- 0 to 360° rotation
- 120 dB wide dynamic range
- Automatic gain control
- Backlight compensation
- 3D digital noise reduction
- Mirroring
- Privacy masking
- Password protection
- PoE technology for easy, clutter-free installation
- Durable metal housing
- IP67 rated for outdoor use
- TVS 2000V lightning protection, surge protection, and transient voltage protection
- cSA, FCC, CE, and UL certified
Key Specs
| Image Sensor |
1/3"-Type CMOS
|
| Focal Length |
2.8 to 12mm
|
| Field of View |
Horizontal: 98 to 28°
Vertical: 51 to 16°
Diagonal: 115 to 32°
|
| Pan/Tilt |
No
|
| Power I/O |
1x DC
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/3"-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
Exposure Control
| Minimum Illumination |
0.018 Lux (Color)
|
Lens
| Focal Length |
2.8 to 12mm
|
| Optical Zoom Ratio |
4.3x
|
| Field of View |
Horizontal: 98 to 28°
Vertical: 51 to 16°
Diagonal: 115 to 32°
|
| Maximum Aperture |
f/1.6
|
Video
| Automatic Gain Control |
Yes
|
| Max IP Streaming |
via RJ45
2560 x 1440 up to 20 fps
2304 x 1296 up to 30.00 fps
|
| Multi-View Streaming |
Yes, 2 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 360°
Vertical: 0 to 90°
|
| Pan/Tilt |
No
|
Networking
| Security |
HTTPS, IEEE 802.1X, Password Protection, Watermark
|
| Supported Protocols |
Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ISAPI
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum]
|
| Other I/O |
1x RJ45
|
| External Storage Options |
Local PC, NAS
|
System Integration
| Analytics |
Motion Detection, Camera Sabotage/Tampering
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Alarm
|
Power
| Power I/O |
1x DC
1x RJ45
|
| Power Consumption |
Power Supply: 11 W
PoE: 12.9 W
|
General
| Material of Construction |
Metal
|
| Environmental Resistance |
Dust/Water-Resistant (IP67)
|
| Certifications |
CSA, UL
|
| Operating Conditions |
-22 to 140°F / -30 to 60°C up to 95% Humidity
|
| Illumination |
850 nm IR LEDs up to 100' / 30.48 m
|
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
4.1 x 4.1 x 5.7" / 10.4 x 10.4 x 14.5 cm
|
| Weight |
2.29 lb / 1040 g (Body Only)
|
Packaging Info
| Package Weight |
2.155 lb
|
| Box Dimensions (LxWxH) |
12.4 x 5.6 x 5.5"
|
