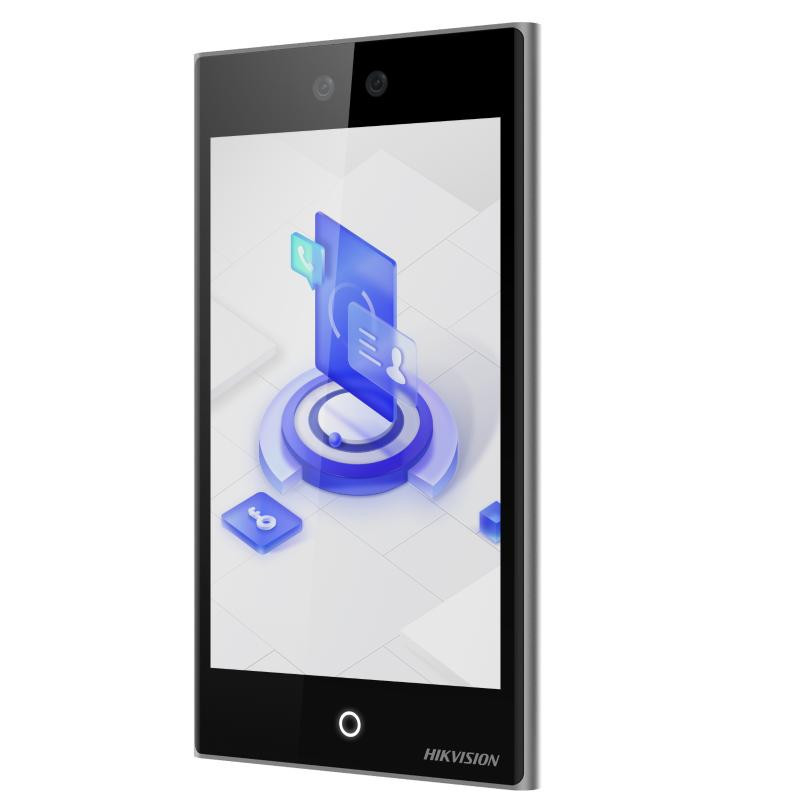

Hikvision Face Recognition Terminals - DS-K1T681DBX
- Android 11 operation system
- 8-inch LCD touch screen, 2 MP wide-angle lens
- Face recognition duration ＜ 0.2 s/User, face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 100,000 face capacity, 10,000 fingerprint capacity (with fingerprint module), 500,000 card capacity, and 500,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP
- Supports face recognition of single person and multiple people (up to 5 people)
- Recognition distance: 0.3 to 3 m
Specification
Display
- Screen size: 8 inch
- Operation method: Capacitive touch screen
- Type: IPS
Video
- Lens: 2
- Resolution: 2 MP
- FOV: HFOV = 41.5°; VFOV = 75.5°
Audio
- Audio quality: Support noise suppression and echo cancellation
Network
- Wired network: Support
- Wi-Fi2.4 GHz, IEEE802.11b, 802.11g, 802.11n, 802.11d, 802.11e, 802.11h, 802.11i
Interface
- Network interface: 1 RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1,RS-485 (Half duplex, HIKVISION）
- RS-232: Reserved
- Wiegand: 1 Wiegand(Hik 26bit,Hik 34bit)
- USB: 2, one (type C) for inserting module or data transmission, the other (type A) for data transmission
- Audio output interface: 1 (3.5 mm)
Capacity
- Captured picture capacity: 100,000
Authentication
- Card type: M1 card; DESfire card; Felica card
- Card presenting mode: Under screen
General
- Power supply: 12 VDC, 3 A/24 VDC, 1.5 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (no condensing)
- Anti-corrosion: 48H (About 2 years protection)
- Dimensions: 232.5 mm × 29.1 mm × 26.5 mm (9.2" × 1.1" × 1.0")
- Gross Weight：1.06 kg (2.34 lb)
Net Weight：0.57 kg (1.26 lb)
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, and Traditional Chinese
