Product Details

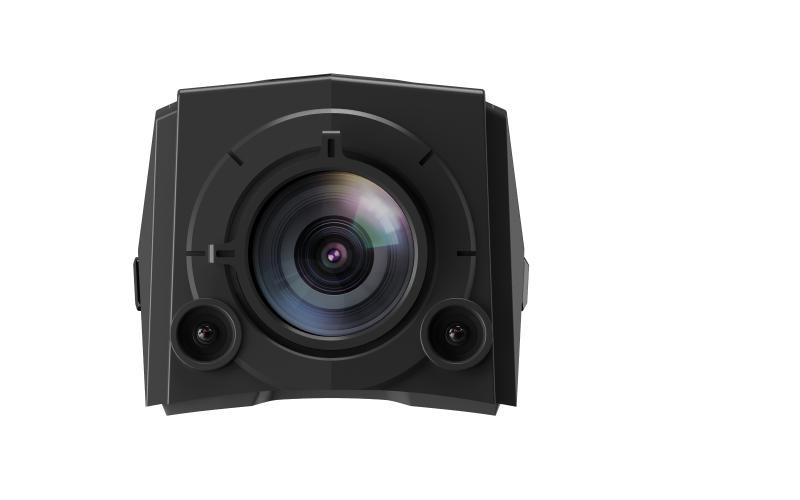

Hikvision Helmet Camera - Up to 1080p/30 fps Recording Resolution - DS-MCH508D

Up to 1080p/30 fps recording resolution
H.264/H.265
IR light supplement
Wide-range lens with 102° horizontal FOV
IP67
The battery is dismountable
Rotatable lens to adjust angle (± 90°)

Datasheet

Specification

CPU

CPU;

Single core,

32 bit,

Main frequency: 0.96 GHz

Camera

Image Sensor: 1/2.8\" progressive scan CMOS"
Max. Recording Resolution: 1920 × 1080
Min. Illumination: Color: 0.03 Lux @ (F2.4, AGC ON), 0 Lux with supplement light
Day & Night: Switch IR cut filter automatically

Lens

Focal Length: 2 mm fixed lens
Aperture: F2.4
FOV: Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 124°

General

Operating System: Linux
Power: 5 VDC, 2.0 A, max. 10 W
Vibration Motor: Supported
MIC: Supported
Gyroscope: Supported

Battery

Capacity: 2700 mAh
Battery Type: Lithium-ion battery, dismountable
Charging Time: ≤ 4 h
Battery Duration: Up to 11h in 720p resolution¹
