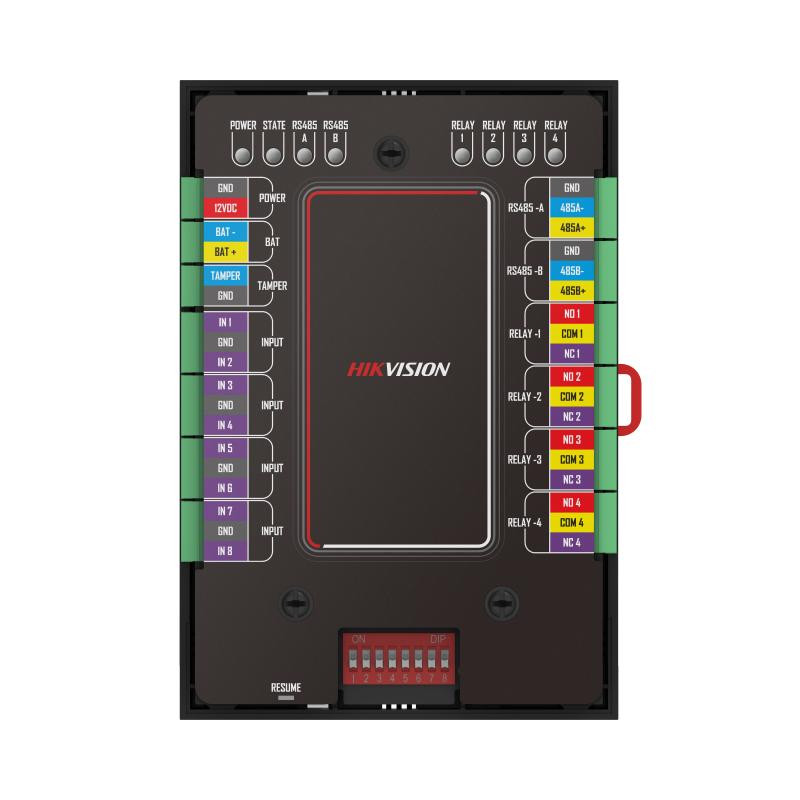

Hikvision I/O Expansion Module Supports 8 Inputs & 4 Outputs - DS-K2M0012X
- Supports 8 inputs and 4 outputs
- Supports communication with access controller via RS-485
- Installation with guide rail
- Supports battery charging and discharging
- Supports indicators for indicating power status, communication status, running status, and door status
- The 270X series access controller supports access to up to 26PCS DS-K2M0012X
- The 262X series access controller supports access to up to 16PCS DS-K2M0012X
Specification
System
- Operating system: MCU
Interface
- Alarm input: 8
- Alarm output: 4
- TAMPER: 1
- RS-485: 2, 2 for access controller
General
- Indicator: 1 for indicating power status, 1 for running status, 2 for communication status, and 4 for alarm output
- Battery: Charge and discharge
- Power supply: 12 ± 15% VDC
- Power consumption: ≤5 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
- Working humidity: 0% to 90% (No condensing)
- Installation: Installation with guide rail
Function
- Configuration via Web browser: Support via access controller
Data Sheet(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
