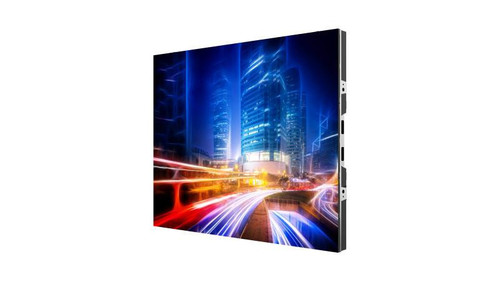

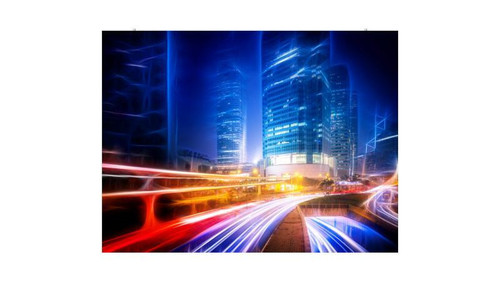

Hikvision Indoor Small Pitch Full Color LED - DS-D4025CS-1F

• Module cable-free design for easier installation

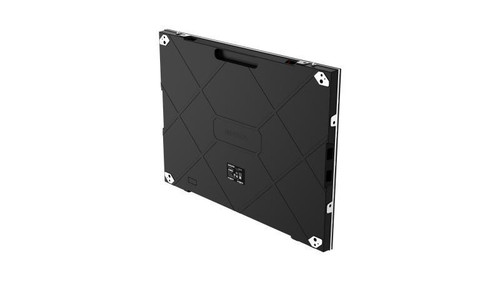

• Ultra-thin backshell, excellent flatness
• C13 power connector, global standard
• Ultra-high contrast ratio, excellent color performance
• 4:3 ratio cabinet, best choice for retail scene
• Modular structure design, support module, power supply, receiver card front maintenance

Specifications

Cabinet

Pixel Configuration: SMD Triad LED
Pixel Pitch Category: P2.5
Pixel Pitch: 2.5mm
Modules Component: 2 × 3
Dimensions (W × H × D): 640 mm × 480 mm × 58.6 mm (25.197 '' × 18.898 '' × 2.307 '')
Resolution: 256 × 192
Area: 0.3072 ㎡
Weight: 7.55 kg (16.64lb.)
Pixel Density: 160000 dots/m²
Cabinet Material: Aluminium die casting
Maintenance Method: Complete front maintenance

Module

Dimensions: 320×160mm

Module Resolution: 128 × 64

Display

White Balance Brightness: 600 cd/㎡
Color Temperature: 3000-10000 K adjustable
Viewing Angle Horizontal: 160°, vertical 160°
Contrast Ratio: ≥ 5000:1
Color Uniformity: ≤ ± 0.003Cx, Cy
Brightness Uniformity: ≥ 97%

Processing Performance

Driving Method: Constant current driving
Frame Frequency: 60 Hz
Refresh Rate: Up to 3840 Hz
Grey Level Up: Up to 16 bit

Power

Power Supply: 100~240 VAC ± 10％
Max. Consumption: ≤450W/㎡
Average Consumption: ≤150W/㎡

Working Environment;

Working Temperature: -10 °C to 40 °C (14 °F to 104 °F)
Working Humidity: 10% to 60% RH (without condensation)
Storage Humidity: 10% to 85% RH (without condensation)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140°F)

General

Packing List;

Qualification Card × 1

Warranty Card × 1

RoHS × 1

Several Joint pieces,Fixing screws and Signal cables

Net Weight: 4 cabinets in 1 box: 19.3 kg ；24 lamp boards in 1 box: 12.0 kg
