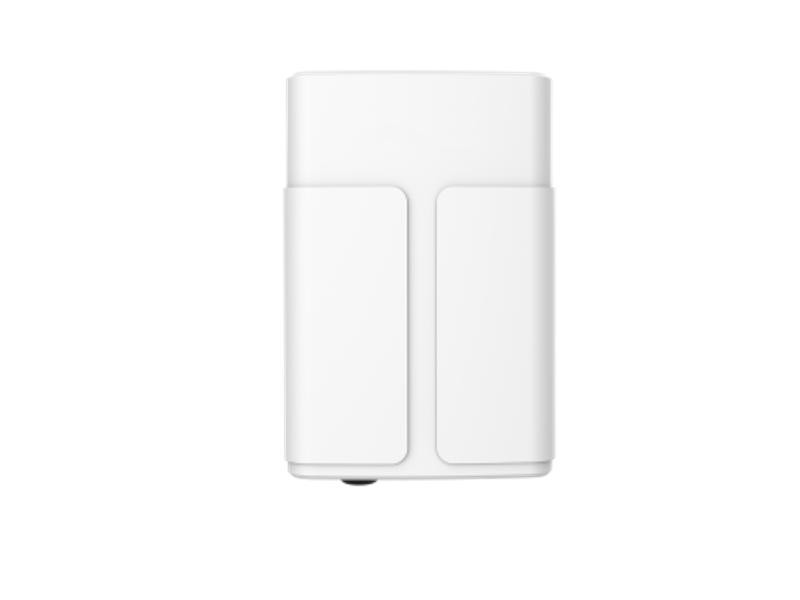

Hikvision LoRaWAN Geomagnetic Gateway - DS-TDP210-LT
- quad-core processor, strong data processing capability, stable operation.
- 8 channel , support half duplex/full-duplex transmission.
- Support Ethernet, wi-fi and cellular network access and multiple link backup, guarantee the stability of data. ...transmission
- Compatible TTN, tencent clouds, ChirpStack LinkWAN in major LoRaWAN ® network server platform.
- Built-in web server and provide the MQTT/HTTP/HTTPS API, convenient rapid implementation application deployment.
- BACnet protocol compatibility, rapid convergence building intelligent management system.
- Support for noise scanning, provide reliable channel deployment recommendations.
- Support the LBT (Listen Before Talk).
- Support IPsec/OpenVPN/L2TP/the PPTP VPN/DMVPN.
- Support Python SDK, developed by the user to run their own Python APP.
- Provide Node - RED visual iot programming tools.
- Wide temperature and wide pressure design, high IP67 degree of protection, support various outdoor scenarios.
- Support wall-mounted installation or pole installation.
Specification
LoRaWAN
- Antenna: Two N type female external antenna interfaces, characteristic impedance 50Ω
- Channel: 8(Full duplex/Half duplex)
- Frequency Band: Default EU868, Support CN470/IN865/RU864/US915/AU915/KR920/AS923-1&2&3&4)
- Receiving Sensitivity: -140 dBm @292 bps
- Transmitting Power: 27 dBm Max
- Protocol: V1.0 Class A/Class B/Class C 和 V1.0.2 Class A/Class B/Class C
Antenna Parameters
- Frequency Range: 860-930 MHz
- Gain: 5 dBi
- Voltage Standing Wave Ratio: ≤2.0
- Polarization Type: Vertical
- Horizontal Beamwidth: 360°
- Vertical Beamwidth: 45°
- Out-of-Roundness: 1.5 dB
- Interface Type: N -Male
- Input Impedance: 50 Ω
- Power Capacity: 20 W
- Dimensions: Φ25×800mm
- Antenna Housing Material: Fiberglass
- Application: Outdoor
Interface
- Network: Ethernet port,1 x 10/100/1000 Mbps(Support 802.3af standard PoE power supply),transmission mode:Full duplex/half duplex adaptive
- Wi-Fi: Antennae：1 built-in antenna, characteristic impedance 50Ω；Standards and frequency bands：IEEE 802.11 b/g/n，2.4GHz；Work pattern：Client mode, AP mode；Security encryption：WEP/WPA/WPA2 authentication, supporting WEP/TKIP/AES encryption.
- Cellular Network: Antennae:1 built-in antenna, characteristic impedance 50 Ω;Sim port:1 个(2FF);Network type:Seven mode full Netcom, support mobile/Unicom/telecom 2G, 3G, 4G;
- GPS: Antennae:1 built-in antenna, characteristic impedance 50 Ω；Location technique:GPS;Sensitivity:167DBM@tracking mode, -149DBM@capture mode, -161DBM@Recapture mode;Horizontal positioning accuracy:Self-positioning less than 2.5m CEP.
- Reset Button: 1 interface
- Debug Serial Port: 1 x Type-C interface
- Built-in Interface: Watchdog, real-time clock, timer
General
- Working Temperature and Humidity: -40 ℃~70 ℃ Under25 ℃ 0%~95%(non-condensing)
- Power Supply: 802.3 af standard PoE power supply or DC 12 V power supply (M12 air interface)
- Power Consumption: ≤4.8 W
- Dimensions: 240 × 164 × 90.9 mm (9.45 × 6.45 × 3.58 inch)
- Installation Mode: Wall hanging or pole mounting
- Storage Temperature and Humidity: -40 ℃~85 ℃,under25 ℃ 0%~95%(No condensation)
